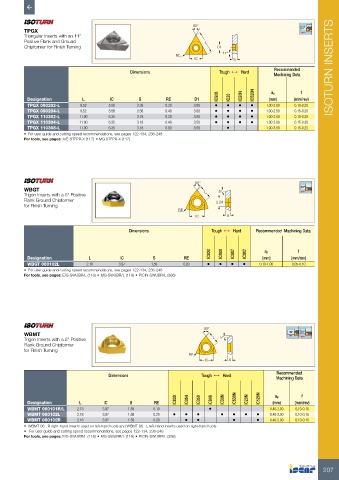

Page 209 - ISCAR(TURNING-CATALOG-42-2022)

60°
TPGX 91 º
Triangular Inserts with an 11°
Positive Flank and Ground L
Chipformer for Finish Turning D1
11°
RE
IC S
Dimensions Tough 1 Hard Recommended ISOTURN INSERTS
Machining Data

f
ap
Designation L IC S RE D1 IC908 IC20 IC20N IC520N (mm) (mm/rev)
TPGX 090202-L 9.52 5.56 2.38 0.20 3.00 • • • • 1.00-2.00 0.10-0.20
TPGX 090204-L 9.52 5.56 2.38 0.40 3.00 • • • • 1.00-2.50 0.15-0.20
TPGX 110302-L 11.00 6.35 3.18 0.20 3.50 • • • • 1.00-2.50 0.10-0.20
TPGX 110304-L 11.00 6.35 3.18 0.40 3.50 • • • • 1.00-3.00 0.15-0.20
TPGX 110308-L 11.00 6.35 3.18 0.80 3.50 • 1.00-3.50 0.15-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117)

80°

WBGT 5° 93º
Trigon Inserts with a 5° Positive L
Flank Ground Chipformer 2.24
for Finish Turning
RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC908 IC807 IC907 ap f
Designation L IC S RE (mm) (mm/rev)
WBGT 060102L 2.18 3.97 1.59 0.20 • • • • 0.10-1.00 0.05-0.10
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386)

80°

WBMT 91° 93º
Trigon Inserts with a 5° Positive L 5°
Flank Ground Chipformer
for Finish Turning
RE
IC S

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC354 IC350 IC908 IC30N IC530N IC20N IC520N ap f
Designation L IC S RE (mm) (mm/rev)
WBMT 060101R/L 2.18 3.97 1.59 0.10 • 0.40-2.00 0.10-0.15
WBMT 060102L 2.18 3.97 1.59 0.20 • • • • • • • 0.40-2.00 0.10-0.15
WBMT 060102R 2.18 3.97 1.59 0.20 • • • • 0.40-2.00 0.10-0.15
• WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386)
