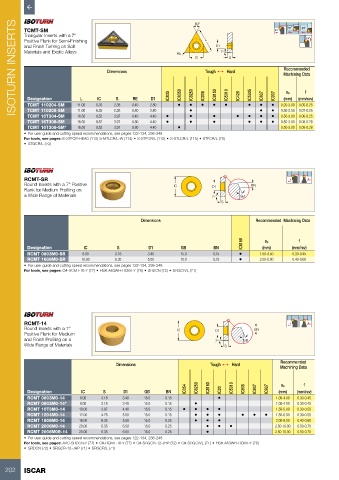

Page 204 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS TCMT-SM Dimensions RE 60° L Tough 1 Hard 91 º Machining Data
91 º
95 º
Triangular Inserts with a 7°
91 º
Positive Flank for Semi-Finishing
and Finish Turning on Soft
D1
Materials and Exotic Alloys
7°
IC
S
Recommended

f
ap
RE
D1
Designation
L
(mm)
IC
S
0.05-0.25
TCMT 110204-SM
•
•
•
6.35
0.80
2.38
2.80
11.00
0.07-0.25
TCMT 110208-SM
0.50-2.50
•
•
•
•
•
4.40
0.50-3.00
16.50
0.06-0.25
TCMT 16T304-SM
0.40
9.52
3.97
•
•
•
•
•
•
0.08-0.28
4.40
0.80
0.50-3.00
16.50
TCMT 16T308-SM 11.00 6.35 2.38 0.40 2.80 • IC830 • IC8350 • IC8250 • IC908 • IC8150 • IC5010 • IC428 • IC5005 • IC807 • IC907 0.20-3.00 (mm/rev)
9.52
3.97
TCMT 16T308-SM* 16.50 9.52 3.97 0.80 4.40 • 0.50-3.00 0.08-0.28
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: E-STFCR-HEAD (115) S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70)
• STGCR/L (70)

RCMT-SR
Round Inserts with a 7° Positive IC D1 BN
Flank for Medium Profiling on
a Wide Range of Materials 7° GB
S
Dimensions Recommended Machining Data
IC8150 ap f
Designation IC S D1 GB BN (mm) (mm/rev)
RCMT 0803M0-SR 8.00 3.18 3.40 15.0 0.15 • 1.00-4.50 0.30-0.45
RCMT 1606M0-SR 16.00 6.35 5.50 15.0 0.18 • 2.00-8.00 0.40-0.60
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-RCMT-16-Y (77) • HSK A63WH-RCMT-Y (76) • SRDCN (72) • SRGCR/L (71)

RCMT-14
Round Inserts with a 7° IC D1 BN
Positive Flank for Medium
and Finish Profiling on a 7° GB
Wide Range of Materials S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC354 IC8250 IC8150 IC5010 IC806 IC807 IC907 ap f
Designation IC S D1 GB BN IC20 (mm) (mm/rev)
RCMT 0803M0-14 8.00 3.18 3.40 15.0 0.15 • 1.00-4.00 0.30-0.45
RCMT 0803M0-14* 8.00 3.18 3.40 15.0 0.15 • 1.00-4.00 0.30-0.45
RCMT 10T3M0-14 10.00 3.97 4.40 15.0 0.15 • • • • 1.50-5.00 0.30-0.50
RCMT 1204M0-14 12.00 4.76 5.50 15.0 0.15 • • • • • • 1.50-6.00 0.30-0.50
RCMT 1606M0-14 16.00 6.35 5.50 15.0 0.25 • • • 2.00-8.00 0.40-0.60
RCMT 2006M0-14 20.00 6.35 6.50 15.0 0.25 • • • 2.50-10.00 0.50-0.70
RCMT 2006M0E-14 20.00 6.35 6.50 15.0 0.25 • 2.50-10.00 0.50-0.70
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: AVC-SRDCN-Y (77) • C#-RCMT-16-Y (77) • C#-SRGCR-12-JHP (72) • C#-SRGCR/L (71) • HSK A63WH-RCMT-Y (76)
• SRDCN (72) • SRGCR-12-JHP (71) • SRGCR/L (71)
