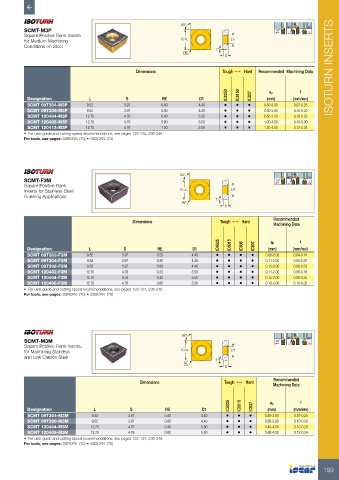

Page 201 - ISCAR(TURNING-CATALOG-42-2022)

90° 45 º
SCMT-M3P 75 º 45 º 45°
Square Positive Flank Inserts
for Medium Machining IC=L D1
Conditions on Steel
7°
RE
S
Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC8250 IC8150 IC807 ap f
Designation L S RE D1 (mm) (mm/rev)
SCMT 09T304-M3P 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.07-0.25
SCMT 09T308-M3P 9.52 3.97 0.80 4.40 • • • 0.50-3.00 0.10-0.30
SCMT 120404-M3P 12.70 4.76 0.40 5.50 • • • 0.50-3.50 0.10-0.25
SCMT 120408-M3P 12.70 4.76 0.80 5.50 • • • 1.00-4.00 0.10-0.30
SCMT 120412-M3P 12.70 4.76 1.20 5.50 • • • 1.20-4.00 0.12-0.34
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

90° 45 º

SCMT-F3M 75 º 45 º 45°
Square Positive Flank
Inserts for Stainless Steel IC=L D1
Finishing Applications
7°
RE
S
Recommended
Dimensions Tough 1 Hard
Machining Data

IC6025 IC6015 IC806 IC807 ap f
Designation L S RE D1 (mm) (mm/rev)
SCMT 09T302-F3M 9.52 3.97 0.20 4.40 • • • • 0.08-2.00 0.04-0.16
SCMT 09T304-F3M 9.52 3.97 0.40 4.40 • • • • 0.11-2.00 0.06-0.25
SCMT 09T308-F3M 9.52 3.97 0.80 4.40 • • • • 0.15-2.00 0.08-0.32
SCMT 120402-F3M 12.70 4.76 0.20 5.50 • • • • 0.11-2.00 0.06-0.18
SCMT 120404-F3M 12.70 4.76 0.40 5.50 • • • • 0.15-2.00 0.08-0.25
SCMT 120408-F3M 12.70 4.76 0.80 5.50 • • • • 0.18-2.00 0.10-0.32
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

90° 45 º
SCMT-M3M 75 º 45 º 45°
Square Positive Flank Inserts,
for Machining Stainless IC=L D1
and Low Carbon Steel
RE 7°
S

Recommended
Dimensions Tough 1 Hard
Machining Data

IC6025 IC6015 IC807 ap f
Designation L S RE D1 (mm) (mm/rev)
SCMT 09T304-M3M 9.52 3.97 0.40 4.40 • • • 0.40-3.80 0.07-0.25
SCMT 09T308-M3M 9.52 3.97 0.80 4.40 • • • 0.80-3.80 0.10-0.30
SCMT 120404-M3M 12.70 4.76 0.40 5.50 • • • 0.40-4.00 0.10-0.25
SCMT 120408-M3M 12.70 4.76 0.80 5.50 • • • 0.80-4.00 0.12-0.34
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: SSBCR/L (70) • SSSCR/L (70)
