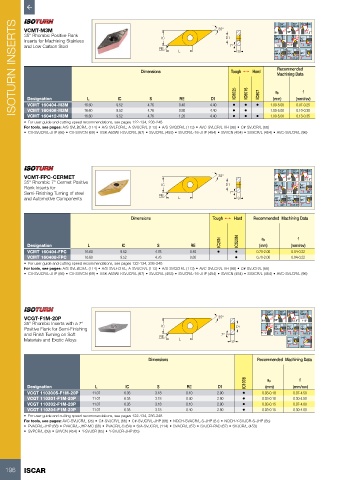

Page 198 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS VCMT-M3M Dimensions RE IC L 35° D1 7° Tough 1 Hard IC807 31° 112° 52° 117.5° 107.5º 30° f 72.5 º
50°
70°MAX
MAX
MAX
93°
91°
35° Rhombic Positive Flank
MAX
Inserts for Machining Stainless
MAX
93 º
and Low Carbon Steel
S
35°
48°
95 º
MAX
MAX
95º
Recommended
Machining Data
IC6015
IC6025
ap
S
RE
IC
L
(mm)
D1
Designation
16.60
9.52
4.76
0.07-0.25
VCMT 160404-M3M
•
•
4.40
16.60
4.76
9.52
1.00-5.00
VCMT 160408-M3M
0.80
0.10-0.30
•
•
•
1.20
1.00-5.00
4.40
0.13-0.35
VCMT 160412-M3M
9.52
16.60
4.76
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 0.40 4.40 • • • 1.00-5.00 (mm/rev)
For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)
• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

52° 50° 70°MAX
VCMT-FPC-CERMET 35° 91° MAX 93° MAX 72.5 º
35° Rhombic 7° Cermet Positive IC D1 31°
Flank Inserts for MAX 30°
MAX
Semi-Finishing Turning of steel RE 7° 112° 117.5° 93 º
and Automotive Components L S 48° 35° 95 º
MAX
MAX
95º 107.5º
Dimensions Tough 1 Hard Recommended Machining Data
IC20N IC520N ap f
Designation L IC S RE (mm) (mm/rev)
VCMT 160404-FPC 16.60 9.52 4.76 0.40 • • 0.70-2.00 0.04-0.22
VCMT 160408-FPC 16.60 9.52 4.76 0.80 • 0.70-2.00 0.04-0.22
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)
• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

52° 50° 70°MAX 31°
VCGT-F1M-20P 35° MAX 93° MAX 72.5 º MAX
35° Rhombic Inserts with a 7° IC 91° 112°
Positive Flank for Semi-Finishing D1 30° 48° 35°
MAX
MAX
MAX
and Finish Turning on Soft RE 7° 117.5° 93 º 95º 107.5º
Materials and Exotic Alloys L S 95 º 142º
93º
Dimensions Recommended Machining Data
IC1008 ap f
Designation L IC S RE D1 (mm) (mm/rev)
VCGT 1103005-F1M-20P 11.07 6.35 3.18 0.10 2.90 • 0.03-0.18 0.07-4.50
VCGT 110301-F1M-20P 11.07 6.35 3.18 0.40 2.90 • 0.03-0.18 0.30-4.50
VCGT 110302-F1M-20P 11.07 6.35 3.18 0.10 2.90 • 0.03-0.15 0.07-4.00
VCGT 110304-F1M-20P 11.07 6.35 3.18 0.40 2.90 • 0.03-0.15 0.30-4.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: AVC-SVUCR/L (95) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65)
• PVACR/L-JHP (68) • PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67) • SVJCR/L (453)
• SVPCR/L (69) • SVVCN (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)
