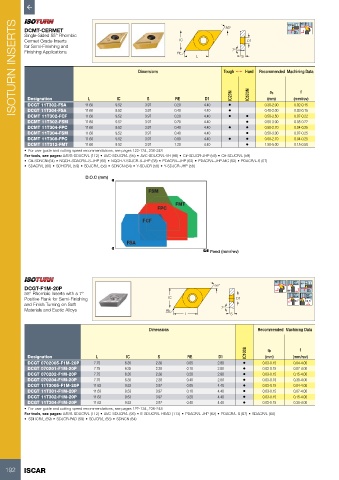

Page 194 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS DCMT-CERMET Dimensions RE IC L Tough 1 Hard Recommended Machining Data
107.5°
93º-95º
55°
50º
MAX
Single-Sided 55° Rhombic
D1
Cermet Grade Inserts
for Semi-Finishing and
7°
Finishing Applications
S

f
ap
IC
L
S
(mm)
D1
RE
Designation
0.02-0.15
DCGT 11T302-FSA
•
0.40
4.40
11.60
9.52
3.97
0.40-2.00
0.03-0.15
DCGT 11T304-FSA
•
0.20
0.07-0.22
4.40
3.97
9.52
0.50-2.50
11.60
DCMT 11T302-FCF
•
3.97
0.05-0.22
0.50-3.00
4.40
0.20
DCMT 11T302-FSM 11.60 9.52 3.97 0.20 4.40 • IC20N • IC520N 0.30-2.00 (mm/rev)
9.52
11.60
DCMT 11T304-FPC 11.60 9.52 3.97 0.40 4.40 • • 0.50-2.70 0.04-0.25
DCMT 11T304-FSM 11.60 9.52 3.97 0.40 4.40 • 0.50-3.00 0.07-0.25
DCMT 11T308-FPC 11.60 9.52 3.97 0.80 4.40 • • 0.50-2.70 0.04-0.25
DCMT 11T312-FMT 11.60 9.52 3.97 1.20 4.40 • 1.50-5.00 0.15-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-JHP-MC (62) • PDACR/L-S (57)
• SDACR/L (60) • SDHCR/L (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58)
D.O.C (mm)
Feed (mm/rev)

107.5° 29°
DCGT-F1M-20P 55° 91° MAX 93º-95º 50º
MAX
55° Rhombic Inserts with a 7° 27° 60°
MAX
Positive Flank for Semi-Finishing IC D1 MAX 62.5 º
93 º
and Finish Turning on Soft
Materials and Exotic Alloys RE 7°
L S
Dimensions Recommended Machining Data
IC1008 ap f
Designation L IC S RE D1 (mm) (mm/rev)
DCGT 0702005-F1M-20P 7.75 6.35 2.38 0.05 2.80 • 0.03-0.15 0.04-4.00
DCGT 070201-F1M-20P 7.75 6.35 2.38 0.10 2.80 • 0.03-0.15 0.07-4.00
DCGT 070202-F1M-20P 7.75 6.35 2.38 0.20 2.80 • 0.03-0.15 0.15-4.00
DCGT 070204-F1M-20P 7.75 6.35 2.38 0.40 2.80 • 0.03-0.15 0.30-4.00
DCGT 11T3005-F1M-20P 11.63 9.53 3.97 0.05 4.40 • 0.03-0.15 0.04-4.00
DCGT 11T301-F1M-20P 11.63 9.53 3.97 0.10 4.40 • 0.03-0.15 0.07-4.00
DCGT 11T302-F1M-20P 11.63 9.53 3.97 0.20 4.40 • 0.03-0.15 0.15-4.00
DCGT 11T304-F1M-20P 11.63 9.53 3.97 0.40 4.40 • 0.03-0.15 0.30-4.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • E-SDUCR/L-HEAD (113) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60)
• SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64)
