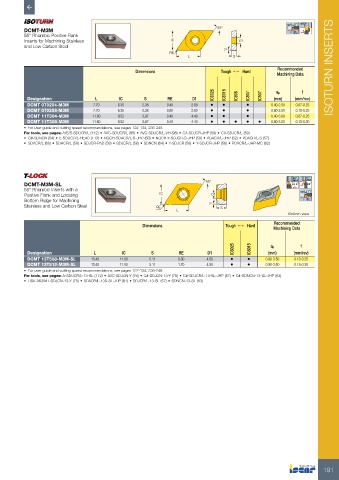

107.5°
DCMT-M3M 55° 93º-95º 50º
55° Rhombic Positive Flank MAX
Inserts for Machining Stainless IC D1
and Low Carbon Steel
7°
RE
L S
Dimensions Tough 1 Hard Recommended ISOTURN INSERTS
Machining Data

IC6025 IC6015 IC806 IC807 IC907 ap f
Designation L IC S RE D1 (mm) (mm/rev)
DCMT 070204-M3M 7.70 6.35 2.38 0.40 2.80 • • • 0.40-2.50 0.07-0.23
DCMT 070208-M3M 7.70 6.35 2.38 0.80 2.80 • • • 0.80-2.50 0.10-0.25
DCMT 11T304-M3M 11.60 9.52 3.97 0.40 4.40 • • • 0.40-3.00 0.07-0.25
DCMT 11T308-M3M 11.60 9.52 3.97 0.40 4.40 • • • • • 0.80-3.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)
• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)
• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

60° 27°
MAX
DCMT-M3M-SL 55° 62.5 º MAX
93 º
55° Rhombic Inserts with a
Positive Flank and Locating IC D1 93º-95º
Bottom Ridge for Machining 50º MAX
Stainless and Low Carbon Steel RE 7° S
L
Bottom view
Recommended
Dimensions Tough 1 Hard
Machining Data

IC6025 IC6015 ap f
Designation L IC S RE D1 (mm) (mm/rev)
DCMT 13T508-M3M-SL 13.40 11.00 5.11 0.80 4.50 • • 0.90-3.50 0.10-0.25
DCMT 13T512-M3M-SL 13.40 11.00 5.11 1.20 4.50 • • 0.90-3.50 0.15-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-SDUCR/L-13-SL (112) • AVC-SDJCN-Y (76) • C#-SDJCN-13-Y (76) • C#-SDJCR/L-13-SL-JHP (57) • C#-SDNCN-13-SL-JHP (63)
• HSK A63WH-SDJCN-13-Y (75) • SDACR/L-13S-SL-JHP (61) • SDJCR/L-13-SL (57) • SDNCN-13-SL (63)

191
