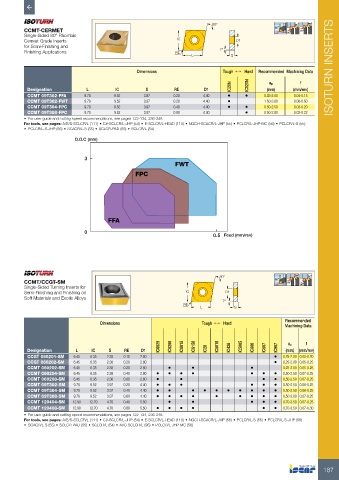

Page 189 - ISCAR(TURNING-CATALOG-42-2022)

80° 95 º 99°
CCMT-CERMET 95 º 95 º 91°
Single-Sided 80° Rhombic
Cermet Grade Inserts IC D1
for Semi-Finishing and
Finishing Applications RE 7°
L S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

f
ap
Designation L IC S RE D1 IC20N IC520N (mm) (mm/rev)
CCMT 09T302-FFA 9.70 9.52 3.97 0.20 4.40 • • 0.03-2.00 0.04-0.15
CCMT 09T302-FWT 9.70 9.52 3.97 0.20 4.40 • 1.50-3.00 0.00-0.50
CCMT 09T304-FPC 9.70 9.52 3.97 0.40 4.40 • • 0.50-2.50 0.03-0.20
CCMT 09T308-FPC 9.70 9.52 3.97 0.80 4.40 • 0.50-2.80 0.03-0.22
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-JHP-MC (56) • PCLCR/L-S (55)
• PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54)
D.O.C (mm)

3
FWT
FPC

FFA
0
0.5 Feed (mm/rev)

80° 99° 95 º
CCMT/CCGT-SM 95 º 91° 95 º
Single-Sided Turning Inserts for
Semi-Finishing and Finishing on IC D1
Soft Materials and Exotic Alloys
7°
RE
L S
Recommended
Dimensions Tough 1 Hard
Machining Data

IC6025 IC8250 IC6015 IC8150 IC5010 IC428 IC5005 IC806 IC807 IC907 ap f
Designation L IC S RE D1 IC20 (mm) (mm/rev)
CCGT 060201-SM 6.45 6.35 2.38 0.10 2.80 • 0.25-2.00 0.05-0.20
CCGT 060202-SM 6.45 6.35 2.38 0.20 2.80 • 0.25-2.00 0.05-0.25
CCMT 060202-SM 6.45 6.35 2.38 0.20 2.80 • • • 0.25-2.00 0.05-0.25
CCMT 060204-SM 6.45 6.35 2.38 0.40 2.80 • • • • • • • 0.50-2.50 0.07-0.25
CCMT 060208-SM 6.45 6.35 2.38 0.80 2.80 • • • • 0.50-2.50 0.07-0.25
CCMT 09T302-SM 9.70 9.52 3.97 0.20 4.40 • • • • • • 0.50-2.50 0.06-0.25
CCMT 09T304-SM 9.70 9.52 3.97 0.40 4.40 • • • • • • • • • • 0.50-2.50 0.06-0.25
CCMT 09T308-SM 9.70 9.52 3.97 0.80 4.40 • • • • • • • • • 0.50-3.00 0.07-0.25
CCMT 120404-SM 12.90 12.70 4.76 0.40 5.50 • • • • • 0.70-3.50 0.07-0.25
CCMT 120408-SM 12.90 12.70 4.76 0.80 5.50 • • • • • • 0.70-3.50 0.07-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

187
