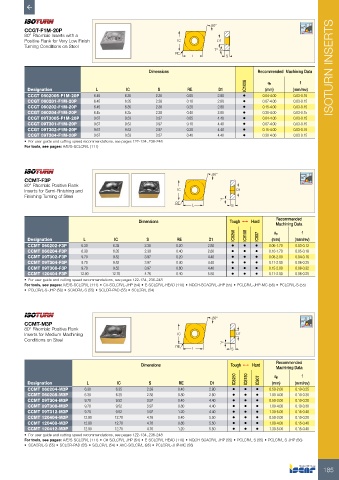

CCGT-F1M-20P 80° 95 º
80° Rhombic Inserts with a
Positive Flank for Very Low Finish IC D1
Turning Conditions on Steel
7°
RE
L S
Dimensions Recommended Machining Data ISOTURN INSERTS

IC1008 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CCGT 0602005-F1M-20P 6.45 6.35 2.38 0.05 2.80 • 0.04-4.00 0.03-0.15
CCGT 060201-F1M-20P 6.45 6.35 2.38 0.10 2.80 • 0.07-4.00 0.03-0.15
CCGT 060202-F1M-20P 6.45 6.35 2.38 0.20 2.80 • 0.15-4.00 0.03-0.15
CCGT 060204-F1M-20P 6.45 6.35 2.38 0.40 2.80 • 0.30-4.00 0.03-0.15
CCGT 09T3005-F1M-20P 9.67 9.53 3.97 0.05 4.40 • 0.04-4.00 0.03-0.15
CCGT 09T301-F1M-20P 9.67 9.53 3.97 0.10 4.40 • 0.07-4.00 0.03-0.15
CCGT 09T302-F1M-20P 9.67 9.53 3.97 0.20 4.40 • 0.15-4.00 0.03-0.15
CCGT 09T304-F1M-20P 9.67 9.53 3.97 0.40 4.40 • 0.30-4.00 0.03-0.15
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111)

80°

CCMT-F3P 95 º
80° Rhombic Positive Flank
Inserts for Semi-Finishing and IC D1
Finishing Turning of Steel
7°
RE
L S

Dimensions Tough 1 Hard Recommended
Machining Data
IC8250 IC8150 IC807 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CCMT 060202-F3P 6.30 6.35 2.38 0.20 2.80 • • • 0.06-1.70 0.03-0.12
CCMT 060204-F3P 6.30 6.35 2.38 0.40 2.80 • • • 0.10-1.70 0.05-0.18
CCMT 09T302-F3P 9.70 9.52 3.97 0.20 4.40 • • • 0.08-2.00 0.04-0.16
CCMT 09T304-F3P 9.70 9.52 3.97 0.40 4.40 • • • 0.11-2.00 0.06-0.25
CCMT 09T308-F3P 9.70 9.52 3.97 0.80 4.40 • • • 0.15-2.00 0.08-0.32
CCMT 120404-F3P 12.90 12.70 4.76 0.40 5.50 • • • 0.11-2.00 0.06-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-JHP-MC (56) • PCLCR/L-S (55)
• PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54)

80°
CCMT-M3P 95 º
80° Rhombic Positive Flank
Inserts for Medium Machining IC D1
Conditions on Steel
7°
RE L S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250 IC8150 IC807 ap f
Designation L IC S RE D1 (mm) (mm/rev)
CCMT 060204-M3P 6.30 6.35 2.38 0.40 2.80 • • • 0.50-2.00 0.10-0.25
CCMT 060208-M3P 6.30 6.35 2.38 0.80 2.80 • • • 1.00-4.00 0.10-0.30
CCMT 09T304-M3P 9.70 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.10-0.20
CCMT 09T308-M3P 9.70 9.52 3.97 0.80 4.40 • • • 1.00-4.00 0.10-0.30
CCMT 09T312-M3P 9.70 9.52 3.97 1.20 4.40 • • • 1.30-5.00 0.15-0.40
CCMT 120404-M3P 12.90 12.70 4.76 0.40 5.50 • • • 0.50-3.00 0.10-0.20
CCMT 120408-M3P 12.90 12.70 4.76 0.80 5.50 • • • 1.00-4.00 0.15-0.40
CCMT 120412-M3P 12.90 12.70 4.76 1.20 5.50 • • • 1.30-5.00 0.15-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)
