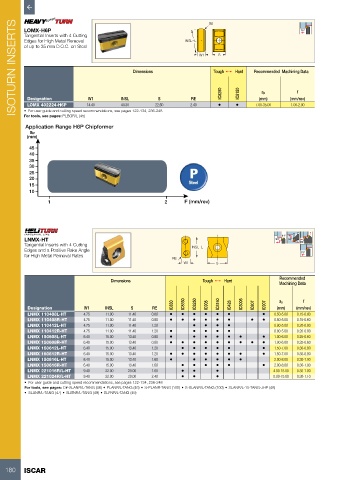

ISOTURN INSERTS LOMX-H6P Dimensions INSL=L W1 RE Tough 1 Hard Recommended Machining Data
75°
Tangential Inserts with 4 Cutting
Edges for High Metal Removal
of up to 35 mm D.O.C. on Steel
S

IC8150
IC8250
f
ap
S
Designation
RE
W1
(mm)
LOMX 402224-H6P
14.40
40.30
1.00-2.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: PLBOR/L (45)
Application Range H6P Chipformer INSL 22.60 2.40 • • 7.00-35.00 (mm/rev)
ap
(mm)
45
40
35
30
25
20
15
10
1 2 F (mm/rev)

LNMX-HT 93° 91° 93º 93 º
Tangential Inserts with 4 Cutting INSL=L
Edges and a Positive Rake Angle 75°
for High Metal Removal Rates
RE
W1 S

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC8350 IC8250 IC908 IC8150 IC428 IC5005 IC807 IC907 ap f
Designation W1 INSL S RE (mm) (mm/rev)
LNMX 110408L-HT 4.75 11.00 11.40 0.80 • • • • • • • 0.50-5.00 0.15-0.60
LNMX 110408R-HT 4.75 11.00 11.40 0.80 • • • • • • • • 0.50-5.00 0.15-0.60
LNMX 110412L-HT 4.75 11.00 11.40 1.20 • • • • 0.80-5.00 0.20-0.80
LNMX 110412R-HT 4.75 11.00 11.40 1.20 • • • • • 0.80-5.00 0.20-0.80
LNMX 150608L-HT 6.40 15.00 13.40 0.80 • • • • • • • 1.00-6.00 0.25-0.60
LNMX 150608R-HT 6.40 15.00 13.40 0.80 • • • • • • • • • 1.00-6.00 0.25-0.60
LNMX 150612L-HT 6.40 15.00 13.40 1.20 • • • • • • 1.50-7.00 0.30-0.80
LNMX 150612R-HT 6.40 15.00 13.40 1.20 • • • • • • • • 1.50-7.00 0.30-0.80
LNMX 150616L-HT 6.40 15.00 13.40 1.60 • • • • • • 2.00-8.00 0.30-1.00
LNMX 150616R-HT 6.40 15.00 13.40 1.60 • • • • • • 2.00-8.00 0.30-1.00
LNMX 221016R/L-HT 9.40 22.00 20.00 1.60 • • • 4.00-15.00 0.30-1.00
LNMX 221024R/L-HT 9.40 22.00 20.00 2.40 • • • 5.00-15.00 0.30-1.10
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-SLANR/L-TANG (48) • PLANR/L-TANG (46) • S-PLANR-TANG (100) • S-SLANR/L-TANG (100) • SLANR/L-15-TANG-JHP (48)
• SLANR/L-TANG (47) • SLBNR/L-TANG (49) • SLFNR/L-TANG (49)
