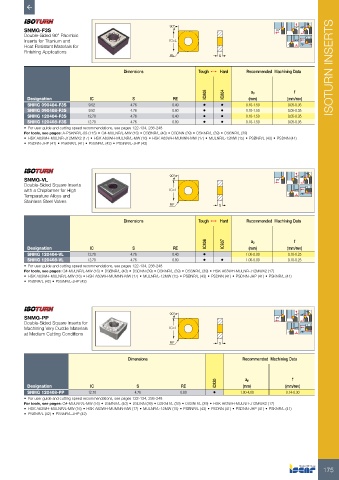

Page 177 - ISCAR(TURNING-CATALOG-42-2022)

45 º
SNMG-F3S 90° 75 º 75 º 45 º
Double-Sided 90° Rhombic
Inserts for Titanium and IC=L 45°
Heat Resistant Materials for 75º
Finishing Applications
RE S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC806 IC804 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 090404-F3S 9.52 4.76 0.40 • • 0.10-1.50 0.05-0.35
SNMG 090408-F3S 9.52 4.76 0.80 • • 0.10-1.50 0.05-0.35
SNMG 120404-F3S 12.70 4.76 0.40 • • 0.10-1.50 0.05-0.35
SNMG 120408-F3S 12.70 4.76 0.80 • • 0.10-1.50 0.05-0.35
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)
• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)
• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

45 º

SNMG-VL 90° 75 º 75 º 45 º
Double-Sided Square Inserts
with a Chipformer for High IC=L 45°
Temperature Alloys and 75º
Stainless Steel Valves
RE S

Dimensions Tough 1 Hard Recommended Machining Data

IC806 IC907 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 120404-VL 12.70 4.76 0.40 • 1.00-5.00 0.10-0.25
SNMG 120408-VL 12.70 4.76 0.80 • • 1.00-5.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)
• PSSNR/L (42) • PSSNR/L-JHP (42)

45 º

SNMG-PP 90° 75 º 75 º 45 º
Double-Sided Square Inserts for
Machining Very Ductile Materials IC=L 45°
at Medium Cutting Conditions 75º

RE S

Dimensions Recommended Machining Data

IC830 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 120408-PP 12.70 4.76 0.80 • 1.00-4.00 0.14-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)
• PSSNR/L (42) • PSSNR/L-JHP (42)

175
