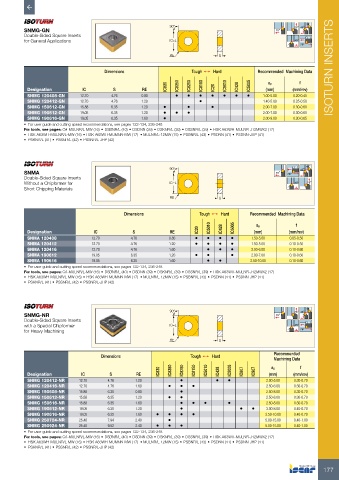

Page 179 - ISCAR(TURNING-CATALOG-42-2022)

45 º
SNMG-GN 90° 75 º 75 º 45 º
Double-Sided Square Inserts
for General Applications IC=L 45°
75º

RE S

Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

IC830 IC8350 IC8250 IC8150 IC5010 IC428 IC5005 ap f
Designation IC S RE IC20 (mm) (mm/rev)
SNMG 120408-GN 12.70 4.76 0.80 • • • • • • • 1.00-5.00 0.20-0.45
SNMG 120412-GN 12.70 4.76 1.20 • 1.40-5.00 0.25-0.50
SNMG 150612-GN 15.88 6.35 1.20 • • • 2.00-7.00 0.30-0.60
SNMG 190612-GN 19.05 6.35 1.20 • • • 2.00-7.00 0.30-0.60
SNMG 190616-GN 19.05 6.35 1.60 • 2.00-9.00 0.30-0.65
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)
• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

45 º
SNMA 90° 75 º 75º 45 º
Double-Sided Square Inserts
Without a Chipformer for IC=L 45° 75 º
Short Chipping Materials
RE S

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation IC S RE IC20 IC5010 IC428 IC5005 (mm) (mm/rev)
SNMA 120408 12.70 4.76 0.80 • • • • 1.50-5.00 0.05-0.50
SNMA 120412 12.70 4.76 1.20 • • • • 1.50-5.00 0.10-0.50
SNMA 120416 12.70 4.76 1.60 • • • 2.00-6.00 0.10-0.60
SNMA 190612 19.05 6.35 1.20 • • • 2.00-7.00 0.10-0.60
SNMA 190616 19.05 6.35 1.60 • • 2.50-10.00 0.10-0.60
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)
• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

45 º
SNMG-NR 90° 75 º 75 º 45 º
Double-Sided Square Inserts
with a Special Chipformer IC=L 45°
for Heavy Machining 75º
RE S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC830 IC8350 IC8250 IC8150 IC5010 IC428 IC5005 IC807 IC907 ap f
Designation IC S RE (mm) (mm/rev)
SNMG 120412-NR 12.70 4.76 1.20 • • • 2.00-5.00 0.30-0.70
SNMG 120416-NR 12.70 4.76 1.60 • • • 2.50-6.00 0.30-0.70
SNMG 150608-NR 15.88 6.35 0.80 • 2.50-8.00 0.30-0.70
SNMG 150612-NR 15.88 6.35 1.20 • • 2.50-8.00 0.30-0.70
SNMG 150616-NR 15.88 6.35 1.60 • • • • 2.50-8.00 0.30-0.70
SNMG 190612-NR 19.05 6.35 1.20 • • • 3.00-8.00 0.40-0.70
SNMG 190616-NR 19.05 6.35 1.60 • • • • 3.50-10.00 0.40-0.70
SNMG 250724-NR 25.40 7.94 2.40 • 5.00-15.00 0.40-1.00
SNMG 250924-NR 25.40 9.52 2.40 • • • 5.00-15.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)
• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

177
