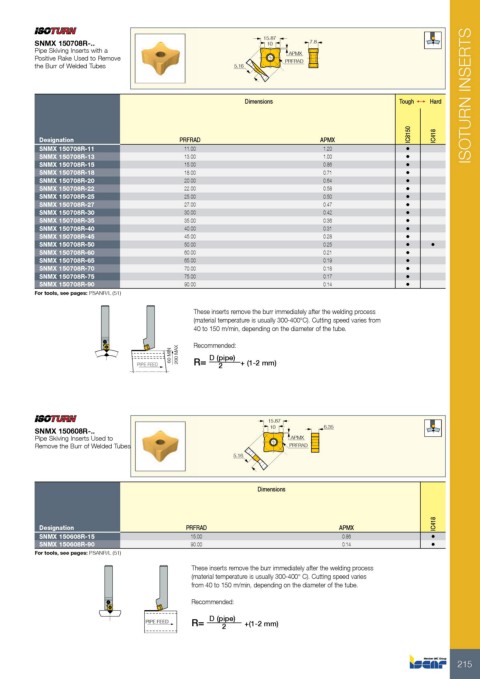

Page 217 - ISCAR(TURNING-CATALOG-42-2022)

SNMX 150708R-.. 15.87 7.8
10
Pipe Skiving Inserts with a APMX
Positive Rake Used to Remove PRFRAD
the Burr of Welded Tubes 5.16

Dimensions Tough 1 Hard ISOTURN INSERTS

IC8150 IC418
Designation PRFRAD APMX
SNMX 150708R-11 11.00 1.20 •
SNMX 150708R-13 13.00 1.00 •
SNMX 150708R-15 15.00 0.86 •
SNMX 150708R-18 18.00 0.71 •
SNMX 150708R-20 20.00 0.64 •
SNMX 150708R-22 22.00 0.58 •
SNMX 150708R-25 25.00 0.50 •
SNMX 150708R-27 27.00 0.47 •
SNMX 150708R-30 30.00 0.42 •
SNMX 150708R-35 35.00 0.36 •
SNMX 150708R-40 40.00 0.31 •
SNMX 150708R-45 45.00 0.28 •
SNMX 150708R-50 50.00 0.25 • •
SNMX 150708R-60 60.00 0.21 •
SNMX 150708R-65 65.00 0.19 •
SNMX 150708R-70 70.00 0.18 •
SNMX 150708R-75 75.00 0.17 •
SNMX 150708R-90 90.00 0.14 •
For tools, see pages: PSANR/L (51)

These inserts remove the burr immediately after the welding process
(material temperature is usually 300-400°C). Cutting speed varies from
40 to 150 m/min, depending on the diameter of the tube.

Recommended:
60 MIN 200 MAX D (pipe)
PIPE FEED R= + (1-2 mm)
2

15.87
SNMX 150608R-.. 10 6.35
Pipe Skiving Inserts Used to APMX
Remove the Burr of Welded Tubes PRFRAD
5.16

Dimensions

IC418
Designation PRFRAD APMX
SNMX 150608R-15 15.00 0.86 •
SNMX 150608R-90 90.00 0.14 •
For tools, see pages: PSANR/L (51)
These inserts remove the burr immediately after the welding process
(material temperature is usually 300-400° C). Cutting speed varies
from 40 to 150 m/min, depending on the diameter of the tube.

Recommended:

R= 2 +(1-2 mm)
PIPE FEED D (pipe)
