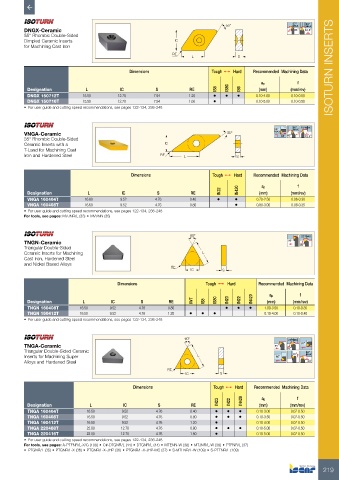

Page 221 - ISCAR(TURNING-CATALOG-42-2022)

27° 60°
MAX
DNGX-Ceramic 55° MAX 62.5 º
93 º
55° Rhombic Double-Sided
Dimpled Ceramic Inserts IC
for Machining Cast Iron
RE
L S
Dimensions Tough 1 Hard Recommended Machining Data ISOTURN INSERTS

ap f
Designation L IC S RE IS8 IS80 IS6 (mm) (mm/rev)
DNGX 150712T 15.50 12.70 7.94 1.20 • • • 0.10-4.00 0.10-0.50
DNGX 150716T 15.50 12.70 7.94 1.60 • 0.10-5.00 0.10-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248

50° 70°MAX
MAX
VNGA-Ceramic 35° 30° 93 º 93° MAX 72.5 º
35° Rhombic Double-Sided
Ceramic Inserts with a IC
T-Land for Machining Cast
Iron and Hardened Steel RE L S

Dimensions Tough 1 Hard Recommended Machining Data
f
ap
Designation L IC S RE IN22 IN420 (mm) (mm/rev)
VNGA 160404T 16.60 9.52 4.76 0.40 • • 0.70-2.50 0.06-0.30
VNGA 160408T 16.60 9.52 4.76 0.80 • 0.80-3.00 0.08-0.35
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: MVJNR/L (33) • MVVNN (35)

60° 22°MAX
TNGN-Ceramic 93° 93 º
Triangular Double-Sided
Ceramic Inserts for Machining L
Cast Iron, Hardened Steel
and Nickel Based Alloys
RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data
f
ap
Designation L IC S RE IW7 IS8 IS80 IN23 IN22 IN420 (mm) (mm/rev)
TNGN 160408T 16.50 9.52 4.76 0.80 • • • 1.00-3.50 0.10-0.35
TNGN 160412T 16.50 9.52 4.76 1.20 • • • 0.10-4.00 0.10-0.40
• For user guide and cutting speed recommendations, see pages 122-134, 236-248

60° 22°MAX
TNGA-Ceramic 91 º 93 º 91 º
Triangular Double-Sided Ceramic 91 º 55°
Inserts for Machining Super L 95 º MAX
Alloys and Hardened Steel 60 º
RE
IC S

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation L IC S RE IN23 IN22 IN420 (mm) (mm/rev)
TNGA 160404T 16.50 9.52 4.76 0.40 • • • 0.10-3.00 0.07-0.50
TNGA 160408T 16.50 9.52 4.76 0.80 • • • 0.10-3.50 0.07-0.50
TNGA 160412T 16.50 9.52 4.76 1.20 • 0.10-4.00 0.07-0.50
TNGA 220408T 22.00 12.70 4.76 0.80 • • • 0.10-5.00 0.07-0.50
TNGA 220416T 22.00 12.70 4.76 1.60 • 0.10-5.00 0.07-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)
• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)
