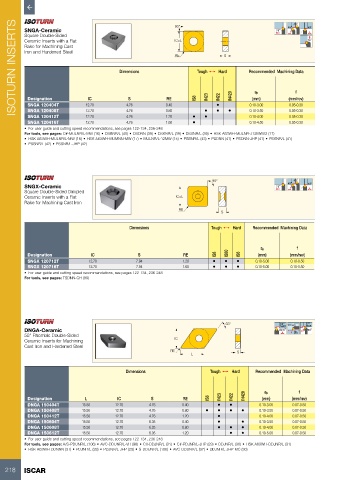

ISOTURN INSERTS SNGA-Ceramic Dimensions 90° Tough 1 Hard S Recommended Machining Data 75 º
45 º
45 º
45°
75 º
Square Double-Sided
Ceramic Inserts with a Flat
IC=L
Rake for Machining Cast
Iron and Hardened Steel
RE

f
ap
(mm)
Designation
S
IC
RE
SNGA 120404T
0.05-0.30
•
SNGA 120408T
12.70
0.80
4.76
0.05-0.30
0.10-3.50
•
SNGA 120412T
0.05-0.30
12.70
4.76
1.20
0.10-4.00
•
4.76
SNGA 120416T 12.70 4.76 0.40 • IS8 • IN23 • IN22 • IN420 0.10-3.00 (mm/rev)
12.70
1.60
0.05-0.30
0.10-4.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)
• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)
• PSSNR/L (42) • PSSNR/L-JHP (42)

90° 45 º
SNGX-Ceramic 75 º 45 º 45°
Square Double-Sided Dimpled
Ceramic Inserts with a Flat IC=L
Rake for Machining Cast Iron
RE
S
Dimensions Tough 1 Hard Recommended Machining Data
ap f
Designation IC S RE IS8 IS80 IS6 (mm) (mm/rev)
SNGX 120712T 12.70 7.94 1.20 • • • 0.10-5.00 0.10-0.50
SNGX 120716T 12.70 7.94 1.60 • • • 0.10-5.00 0.10-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: TSDNN-CH (89)

55° 60° 27°
MAX
DNGA-Ceramic 62.5 º 93º-95º 50º MAX
93 º
55° Rhombic Double-Sided MAX
Ceramic Inserts for Machining IC
Cast Iron and Hardened Steel
RE S
L

Dimensions Tough 1 Hard Recommended Machining Data

f
ap
Designation L IC S RE IS8 IN23 IN22 IN420 (mm) (mm/rev)
DNGA 150404T 15.50 12.70 4.76 0.40 • • 0.10-3.00 0.07-0.50
DNGA 150408T 15.50 12.70 4.76 0.80 • • • • 0.10-3.50 0.07-0.50
DNGA 150412T 15.50 12.70 4.76 1.20 • 0.10-4.00 0.07-0.50
DNGA 150604T 15.50 12.70 6.35 0.40 • • 0.10-3.50 0.07-0.50
DNGA 150608T 15.50 12.70 6.35 0.80 • • • 0.10-4.00 0.07-0.50
DNGA 150612T 15.50 12.70 6.35 1.20 • • 0.10-5.00 0.07-0.50
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

218 ISCAR
