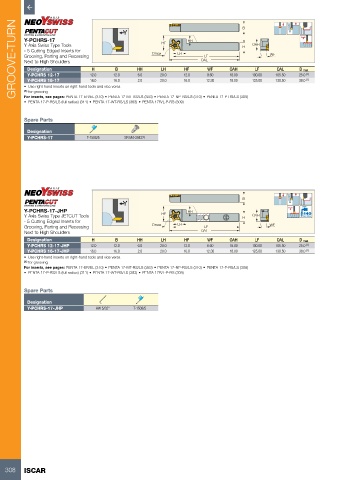

Page 310 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN Y-PCHRS-17 12.0 12.0 HH Dmax 20.0 LH 12.0 HH OAL 12.30 OAH B H OAH WF 105.50 25.0 (1) (1)

HF
Y Axis Swiss Type Tools
- 5 Cutting Edged Inserts for
Grooving, Parting and Recessing
LF
Next to High Shoulders
Designation
WF
OAL
LF
LH
HF
H
B
D max
Y-PCHRS 12-17
100.00
18.00
6.0
8.60
Y-PCHRS 16-17
18.00
16.0
20.0
38.0
16.0
16.0
125.00
130.50
2.0
• Use right-hand inserts on right-hand tools and vice versa
(1) for grooving
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)

Spare Parts
Designation
Y-PCHRS-17 T-1508/5 SR M4-39432L

B
Y-PCHRS-17-JHP HH
Y Axis Swiss Type JETCUT Tools HF H OAH Bar Max
- 5 Cutting Edged Inserts for LH
Grooving, Parting and Recessing Dmax LF WF
Next to High Shoulders OAL
Designation H B HH LH HF WF OAH LF OAL D max
Y-PCHRS 12-17-JHP 12.0 12.0 6.0 20.0 12.0 8.60 18.00 100.00 105.50 25.0 (1)
Y-PCHRS 16-17-JHP 16.0 16.0 2.0 20.0 16.0 12.30 18.00 125.00 130.50 38.0
(1)
• Use right-hand inserts on right-hand tools and vice versa
(1) for grooving
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)

Spare Parts

Designation
Y-PCHRS-17-JHP HW 5/32" T-1508/5

308 ISCAR
