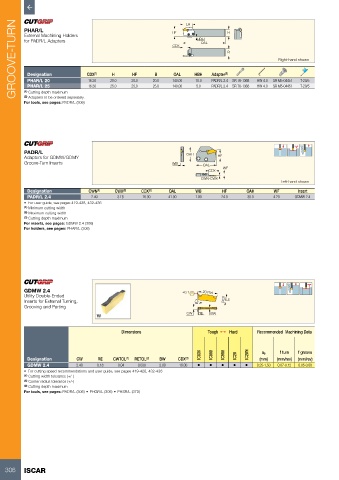

Page 308 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN PHAR/L CDX (1) 20.0 20.0 20.0 HF LH HBH OAL Adapter (2) H B SR 76-1368 HW 4.0 SR M5-04451 T-20/5

External Machining Holders
HBH
for PADR/L Adapters
CDX

Right-hand shown

H
HF
B
OAL
Designation
PHAR/L 20
16.30
140.00
10.0
PADR/L 2.4

PHAR/L 25
(1) Cutting depth maximum
(2) Adapters to be ordered separately.
For tools, see pages: PADR/L (306) 16.30 25.0 25.0 25.0 140.00 5.0 PADR/L 2.4 SR 76-1368 HW 4.0 SR M5-04451 T-20/5

PADR/L OAH
Adapters for GDMW/GDMY HF
Groove-Turn Inserts WB OAL
CDX WF
CWN-CWX
Left-hand shown
Designation CWN (1) CWX (2) CDX (3) OAL WB HF OAH WF Insert
PADR/L 2.4 2.40 3.18 16.30 41.00 1.90 24.0 30.0 4.20 GDMW 2.4
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
For inserts, see pages: GDMW 2.4 (306)
For holders, see pages: PHAR/L (306)

GDMW 2.4 ±0.1 20 Ref.
Utility Double-Ended
Inserts for External Turning, 7˚ 5.5
Grooving and Parting
CW RE BW

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC808 IC908 IC20 IC20N ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm) (mm/rev) (mm/rev)
GDMW 2.4 2.40 0.18 0.04 0.030 2.00 18.00 • • • • • 0.25-1.50 0.07-0.12 0.05-0.08
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: PADR/L (306) • PHGR/L (305) • PHSR/L (373)
