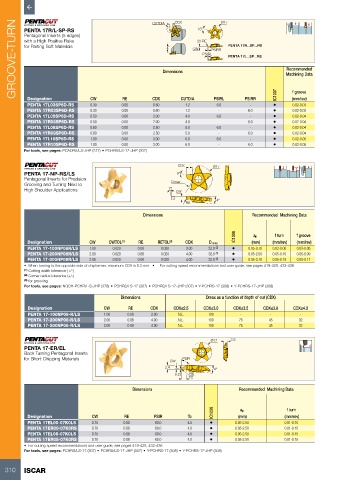

Page 312 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN PENTA 17R/L-SP-RS CUTDIA Dimensions CW 2X RE PSIRR Ø17 PENTA 17R...SP...RS Machining Data
CDX
18˚
Pentagonal Inserts (5 edges)
with a High Positive Rake
for Parting Soft Materials
4˚
PSIRL
PENTA 17L...SP...RS
Recommended

(mm/rev)
Designation
RE
PENTA 17L03SP6D-RS CW 0.00 CDX CUTDIA PSIRL PSIRR • IC1007 f groove
-
0.30
0.02-0.03
1.2
0.60
6.0
PENTA 17R03SP6D-RS 0.30 0.00 0.60 1.2 - 6.0 • 0.02-0.03
PENTA 17L05SP6D-RS 0.50 0.00 2.00 4.0 6.0 - • 0.02-0.04
PENTA 17R05SP6D-RS 0.50 0.00 2.00 4.0 - 6.0 • 0.02-0.04
PENTA 17L08SP6D-RS 0.80 0.00 2.50 5.0 6.0 - • 0.02-0.04
PENTA 17R08SP6D-RS 0.80 0.00 2.50 5.0 - 6.0 • 0.02-0.04
PENTA 17L10SP6D-RS 1.00 0.00 3.00 6.0 6.0 - • 0.02-0.05
PENTA 17R10SP6D-RS 1.00 0.00 3.00 6.0 - 6.0 • 0.02-0.05
For tools, see pages: PCADRS/LS-JHP (317) • PCHRS/LS-17-JHP (307)

CDX Ø17
PENTA 17-NP-RS/LS 9°
Pentagonal Inserts for Precision
Grooving and Turning Next to Dmax
High Shoulder Applications 7° CW
4°
RE
Dimensions Recommended Machining Data

IC1008 ap f turn f groove
Designation CW CWTOL (1) RE RETOL (2) CDX D max (mm) (mm/rev) (mm/rev)
PENTA 17-100NP08R/LS 1.00 0.020 0.08 0.020 3.00 32.0 (3) • 0.05-0.70 0.02-0.06 0.03-0.06
PENTA 17-200NP08R/LS 2.00 0.020 0.08 0.020 4.00 32.0 • 0.05-2.50 0.05-0.15 0.05-0.09
(3)
PENTA 17-300NP08R/LS 3.00 0.020 0.08 0.020 4.00 32.0 • 0.05-3.10 0.05-0.19 0.05-0.11
(3)
• When turning to the opposite side of chipformer, maximum CDX is 0.5 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) for grooving
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308) • Y-PCHRS-17-JHP (308)
Dimensions Dmax as a function of depth of cut (CDX)

Designation CW RE CDX CDX≤2.5 CDX≤3.0 CDX≤3.5 CDX≤3.8 CDX≤4.0
PENTA 17-100NP08-R/LS 1.00 0.08 3.00 N.L. 100 - - -
PENTA 17-200NP08-R/LS 2.00 0.08 4.00 N.L. 100 75 45 32
PENTA 17-300NP08-R/LS 3.00 0.08 4.00 N.L. 100 75 45 32
Ø17 3.5

PENTA 17-ER/EL
Back Turning Pentagonal Inserts
for Short Chipping Materials CW PSIR
2.4 4°
0.2 RE
TC
Dimensions Recommended Machining Data

IC1008 ap f turn
Designation CW RE PSIR Tc (mm) (mm/rev)
PENTA 17EL00-07K0LS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15
PENTA 17ER00-07K0RS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15
PENTA 17EL08-07K0LS 0.70 0.08 60.0 4.0 • 0.05-2.50 0.01-0.15
PENTA 17ER08-07K0RS 0.70 0.08 60.0 4.0 • 0.05-2.50 0.01-0.15
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
For tools, see pages: PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308) • Y-PCHRS-17-JHP (308)

310 ISCAR
