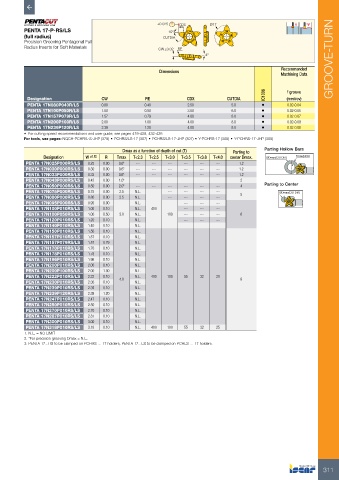

Page 313 - ISCAR(TURNING-CATALOG-42-2022)

±0.025 CDX Ø17
PENTA 17-P-RS/LS 10°
(full radius) CUTDIA
Precision Grooving Pentagonal Full
Radius Inserts for Soft Materials CW ±0.02 RE
4° GROOVE-TURN

Dimensions Recommended
Machining Data

IC1008 f groove
Designation CW RE CDX CUTDIA (mm/rev)
PENTA 17N080P040R/LS 0.80 0.40 2.50 5.0 • 0.02-0.04
PENTA 17N100P050R/LS 1.00 0.50 3.00 6.0 • 0.02-0.05
PENTA 17N157P079R/LS 1.57 0.79 4.00 8.0 • 0.02-0.07
PENTA 17N200P100R/LS 2.00 1.00 4.00 8.0 • 0.02-0.08
PENTA 17N239P120R/LS 2.39 1.20 4.00 8.0 • 0.02-0.08
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308) • Y-PCHRS-17-JHP (308)
Dmax as a function of depth of cut (T) Parting to Parting Hollow Bars
Designation W ±0.02 R Tmax T<2.3 T<2.5 T<3.0 T<3.5 T<3.8 T<4.0 center Dmax. ØDmax(CUTDIA) Tmax(CDX)
PENTA 17N025P000RS/LS 0.25 0.00 0.6* --- --- --- --- --- --- 1.2
PENTA 17N030P000RS/LS 0.30 0.00 0.6* --- --- --- --- --- --- 1.2
PENTA 17N033P000RS/LS 0.33 0.00 0.6* --- --- --- --- --- --- 1.2
PENTA 17N043P000RS/LS 0.43 0.00 1.0* --- --- --- --- --- --- 2
PENTA 17N050P000RS/LS 0.50 0.00 2.0* --- --- --- --- --- --- 4 Parting to Center
PENTA 17N075P000RS/LS 0.75 0.00 2.5 N.L. --- --- --- --- 5 ØDmax(CUTDIA)
PENTA 17N080P000RS/LS 0.80 0.00 2.5 N.L. --- --- --- ---
PENTA 17N095P000RS/LS 0.95 0.00 N.L. --- --- ---
PENTA 17N100P010RS/LS 1.00 0.10 N.L. 400 --- --- ---
PENTA 17N100P050RS/LS 1.00 0.50 3.0 N.L. 100 --- --- --- 6
PENTA 17N120P010RS/LS 1.20 0.10 N.L. --- --- ---
PENTA 17N140P010RS/LS 1.40 0.10 N.L. --- --- ---
PENTA 17N150P010RS/LS 1.50 0.10 N.L.
PENTA 17N157P010RS/LS 1.57 0.10 N.L.
PENTA 17N157P079RS/LS 1.57 0.79 N.L.
PENTA 17N170P010RS/LS 1.70 0.10 N.L.
PENTA 17N178P010RS/LS 1.78 0.10 N.L.
PENTA 17N196P010RS/LS 1.96 0.10 N.L.
PENTA 17N200P010RS/LS 2.00 0.10 N.L.
PENTA 17N200P100RS/LS 2.00 1.00 N.L.
PENTA 17N222P010RS/LS 2.22 0.10 4.0 N.L. 400 100 55 32 20 8
PENTA 17N230P010RS/LS 2.30 0.10 N.L.
PENTA 17N239P010RS/LS 2.39 0.10 N.L.
PENTA 17N239P120RS/LS 2.39 1.20 N.L.
PENTA 17N247P010RS/LS 2.47 0.10 N.L.
PENTA 17N250P010RS/LS 2.50 0.10 N.L.
PENTA 17N270P010RS/LS 2.70 0.10 N.L.
PENTA 17N287P010RS/LS 2.87 0.10 N.L.
PENTA 17N300P010RS/LS 3.00 0.10 N.L.
PENTA 17N318P010RS/LS 3.18 0.10 N.L. 400 100 55 32 25
1. N.L. = NO LIMIT
2. *For precision grooving Dmax = N.L.
3. PENTA 17...RS to be clamped on PCHRS ...-17 holders, PENTA 17...LS to be clamped on PCHLS ...-17 holders.

311
