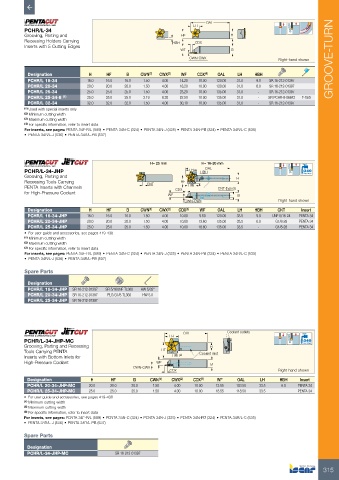

Page 317 - ISCAR(TURNING-CATALOG-42-2022)

LH OAL
PCHR/L-34
Grooving, Parting and HF H
Recessing Holders Carrying HBH CDX
Inserts with 5 Cutting Edges
WF B
CWN-CWX Right-hand shown GROOVE-TURN

Designation H HF B CWN (2) CWX (3) WF CDX (4) OAL LH HBH
PCHR/L 16-34 16.0 16.0 16.0 1.50 4.00 14.20 10.00 120.00 31.0 9.0 SR 16-212-01397
PCHR/L 20-34 20.0 20.0 20.0 1.50 4.00 18.20 10.00 120.00 31.0 6.0 SR 16-212-01397
PCHR/L 25-34 25.0 25.0 25.0 1.50 4.00 23.20 10.00 135.00 31.0 - SR 16-212-01397
PCHR/L 25-34-8 (1) 25.0 25.0 25.0 3.19 8.20 22.50 10.00 135.00 31.0 - SR PCHR-8-06642 T-15/5
PCHR/L 32-34 32.0 32.0 32.0 1.50 4.00 30.10 10.00 135.00 31.0 - SR 16-212-01397
(1) Used with special inserts only
(2) Minimum cutting width
(3) Maximum cutting width
(4) For specific information, refer to insert data
For inserts, see pages: PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)

H= 25 mm H= 16-20 mm
OAL
PCHR/L-34-JHP LH HBH
Grooving, Parting and H Bar Max
Recessing Tools Carrying CNT HF Lock
PENTA Inserts with Channels CDX HBL CNT (typx3)
for High-Pressure Coolant WF B
CWN-CWX Right-hand shown
Designation H HF B CWN (1) CWX (2) CDX (3) WF OAL LH HBH CNT Insert
PCHR/L 16-34-JHP 16.0 16.0 16.0 1.50 4.00 10.00 9.60 120.00 33.5 9.0 UNF 5/16-24 PENTA 34
PCHR/L 20-34-JHP 20.0 20.0 20.0 1.50 4.00 10.00 13.60 135.00 33.5 6.0 G1/8-28 PENTA 34
PCHR/L 25-34-JHP 25.0 25.0 25.0 1.50 4.00 10.00 18.60 135.00 33.5 - G1/8-28 PENTA 34
• For user guide and accessories, see pages 419-438
(1) Minimum cutting width
(2) Maximum cutting width
(3) For specific information, refer to insert data
For inserts, see pages: PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)

Spare Parts

Designation
PCHR/L 16-34-JHP SR 16-212-01397 SR 5/16UNF TL360 HW 5/32"
PCHR/L 20-34-JHP SR 16-212-01397 PLG G1/8 TL360 HW 5.0
PCHR/L 25-34-JHP SR 16-212-01397

OAL Coolant outlets
PCHR/L-34-JHP-MC LH
Grooving, Parting and Recessing H Bar Max
Tools Carrying PENTA HF Lock Coolant inlet
Inserts with Bottom Inlets for HBH
High-Pressure Coolant WF B
CWN-CWX
CDX Right-hand shown
Designation H HF B CWN (1) CWX (2) CDX (3) WF OAL LH HBH Insert
PCHR/L 20-34-JHP-MC 20.0 20.0 20.0 1.50 4.00 10.00 13.55 103.50 33.5 6.0 PENTA 34
PCHR/L 25-34-JHP-MC 25.0 25.0 25.0 1.50 4.00 10.00 18.55 118.50 33.5 - PENTA 34
• For user guide and accessories, see pages 419-438
(1) Minimum cutting width
(2) Maximum cutting width
(3) For specific information, refer to insert data
For inserts, see pages: PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)

Spare Parts
Designation
PCHR/L-34-JHP-MC SR 16-212-01397

315
