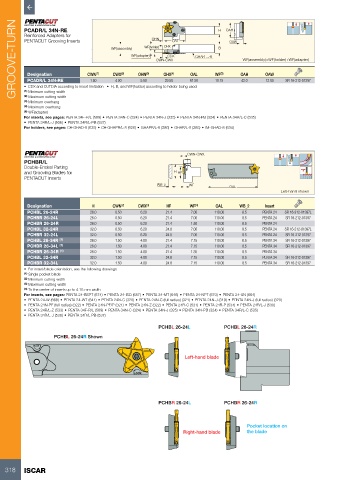

Page 320 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN PCADR/L 34N-RE CWN (1) WF(assembly) WF(adapter) OHN OHX (4) OAL 61.50 WF H B (5) OAH OAH OAW SR 16-212-01397
Reinforced Adapters for
PENTACUT Grooving Inserts
OAW
OHX
WF(holder)
CDX
GHAR ...-8
CWN-CWX
WF(assembly)=WF(holder)+WF(adapter)
(3)
(2)
Designation
CWX
OHN
OAL
PCADR/L 34N-RE
10.15
29.50
42.0
4.00
5.50
1.50
12.00
• CDX and CUTDIA according to insert limitation • H, B, and WF(holder) according to holder being used
(1) Minimum cutting width
(2) Maximum cutting width
(3) Minimum overhang
(4) Maximum overhang
(5) WF(adapter)
For inserts, see pages: PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)
For holders, see pages: C#-GHAD-8 (625) • C#-GHAPR/L-8 (626) • GHAPR/L-8 (286) • GHAR/L-8 (285) • IM-GHAD-8 (634)

CWN-CWX
PCHBR/L
Double-Ended Parting
and Grooving Blades for H HF
PENTACUT Inserts
WB_2 WF OAL
Left-hand shown
Designation H CWN (2) CWX (3) HF WF (4) OAL WB_2 Insert
PCHBL 26-24R 26.0 0.50 6.20 21.4 7.00 110.00 8.5 PENTA 24 SR 16-212-01397L
PCHBR 26-24L 26.0 0.50 6.20 21.4 7.00 110.00 8.5 PENTA 24 SR 16-212-01397
PCHBR 26-24R 26.0 0.50 6.20 21.4 1.50 110.00 8.5 PENTA 24
PCHBL 32-24R 32.0 0.50 6.20 24.8 7.00 110.00 8.5 PENTA 24 SR 16-212-01397L
PCHBR 32-24L 32.0 0.50 6.20 24.8 7.00 110.00 8.5 PENTA 24 SR 16-212-01397
PCHBL 26-34R (1) 26.0 1.50 4.00 21.4 7.15 110.00 8.5 PENTA 34 SR 16-212-01397
PCHBR 26-34L (1) 26.0 1.50 4.00 21.4 7.15 110.00 8.5 PENTA 34 SR 16-212-01397
PCHBR 26-34R (1) 26.0 1.50 4.00 21.4 1.35 110.00 8.5 PENTA 34
PCHBL 32-34R 32.0 1.50 4.00 24.8 7.15 110.00 8.5 PENTA 34 SR 16-212-01397
PCHBR 32-34L 32.0 1.50 4.00 24.8 7.15 110.00 8.5 PENTA 34 SR 16-212-01397
• For insert/blade orientation, see the following drawings
(1) Single pocket blade
(2) Minimum cutting width
(3) Maximum cutting width
(4) To the center of inserts up to 4.15 mm width
For inserts, see pages: PENTA 24-BSPT (674) • PENTA 24-ISO (657) • PENTA 24-MT (646) • PENTA 24-NPT (670) • PENTA 24-UN (664)
• PENTA 24-W (668) • PENTA 24-WT (641) • PENTA 24N-C (320) • PENTA 24N-C (full radius) (321) • PENTA 24N-J (319) • PENTA 24N-J (full radius) (320)
• PENTA 24N-PF (full radius) (322) • PENTA 24N-PF/P (321) • PENTA 24N-Z (322) • PENTA 24R-C (531) • PENTA 24R-P (534) • PENTA 24R/L-J (530)
• PENTA 24R/L-Z (533) • PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)
PCHBL 26-24L PCHBL 26-24R
PCHBL 26-24R Shown

Lock
Left-hand blade

Lock

PCHBR 26-24L PCHBR 26-24R

Pocket location on
Right-hand blade the blade
