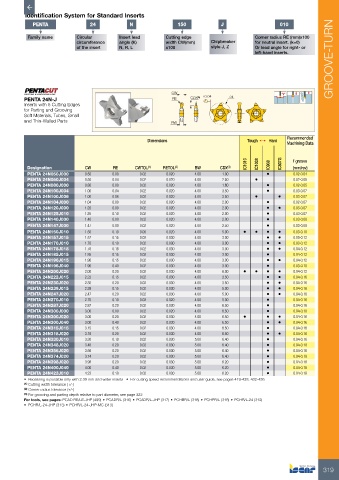

Page 321 - ISCAR(TURNING-CATALOG-42-2022)

Identification System for Standard Inserts

PENTA 24 N 150 J 010

Family name Circular Insert lead Cutting edge Corner radius RE (mm)x100
circumference angle (K) width CW(mm) Chipbreaker for neutral insert. (k=0)
of the insert N, R, L x100 style J, Z Or lead angle for right- or
left-hand inserts.
(eg. 15D=15º) GROOVE-TURN

CW
PENTA 24N-J RE CDX (3) ±0.04 24
Inserts with 5 Cutting Edges
for Parting and Grooving
Soft Materials, Tubes, Small
and Thin-Walled Parts BW

Recommended
Dimensions Tough 1 Hard
Machining Data

IC1010 IC1008 IC908 IC807G f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm/rev)
PENTA 24N050J000 0.50 0.00 0.02 0.020 4.00 1.00 • 0.02-0.04
PENTA 24N050J004 0.50 0.04 0.02 0.020 4.00 2.50 • 0.02-0.05
PENTA 24N080J000 0.80 0.00 0.02 0.020 4.00 1.60 • 0.02-0.05
PENTA 24N100J004 1.00 0.04 0.02 0.020 4.00 3.50 • 0.03-0.07
PENTA 24N100J006 1.00 0.06 0.02 0.020 4.00 3.50 • • 0.03-0.07
PENTA 24N104J000 1.04 0.00 0.02 0.020 4.00 2.00 • 0.02-0.07
PENTA 24N120J000 1.20 0.00 0.02 0.020 4.00 2.00 • • 0.03-0.07
PENTA 24N125J010 1.25 0.10 0.02 0.020 4.00 2.00 • 0.03-0.07
PENTA 24N140J000 1.40 0.00 0.02 0.020 4.00 2.00 • 0.03-0.08
PENTA 24N147J000 1.47 0.00 0.02 0.020 4.00 2.50 • 0.03-0.08
PENTA 24N150J010 1.50 0.10 0.00 0.020 4.00 5.00 • • • • 0.03-0.10
PENTA 24N157J015 1.57 0.15 0.02 0.030 4.00 3.00 • • 0.00-0.12
PENTA 24N170J010 1.70 0.10 0.02 0.030 4.00 3.00 • • 0.03-0.12
PENTA 24N178J018 1.78 0.18 0.02 0.030 4.00 3.00 • • 0.04-0.12
PENTA 24N185J015 1.85 0.15 0.02 0.030 4.00 3.00 • 0.04-0.12
PENTA 24N196J015 1.96 0.15 0.02 0.030 4.00 3.00 • • 0.04-0.12
PENTA 24N196J040 1.96 0.40 0.02 0.030 4.00 3.00 • 0.03-0.10
PENTA 24N200J020 2.00 0.20 0.02 0.030 4.00 6.00 • • • • 0.04-0.12
PENTA 24N222J015 2.22 0.15 0.02 0.030 4.00 3.50 • • 0.04-0.16
PENTA 24N230J020 2.30 0.20 0.02 0.030 4.00 3.50 • • 0.04-0.16
PENTA 24N239J015 2.39 0.15 0.02 0.030 4.00 5.00 • • 0.04-0.16
PENTA 24N247J020 2.47 0.20 0.02 0.030 4.00 5.00 • • 0.04-0.16
PENTA 24N270J010 2.70 0.10 0.02 0.020 4.00 5.00 • 0.04-0.16
PENTA 24N287J020 2.87 0.20 0.02 0.030 4.00 6.50 • 0.04-0.16
PENTA 24N300J000 3.00 0.00 0.02 0.020 4.00 6.50 • 0.04-0.10
PENTA 24N300J020 3.00 0.20 0.02 0.030 4.00 6.50 • • • 0.04-0.16
PENTA 24N300J040 3.00 0.40 0.02 0.030 4.00 6.50 • • 0.04-0.16
PENTA 24N315J015 3.15 0.15 0.02 0.030 4.00 6.50 • 0.04-0.16
PENTA 24N318J020 3.18 0.20 0.02 0.030 4.00 6.50 • • 0.04-0.16
PENTA 24N330J010 3.30 0.10 0.02 0.030 5.00 6.40 • 0.04-0.16
PENTA 24N348J020 3.48 0.20 0.02 0.030 5.00 6.40 • 0.04-0.18
PENTA 24N356J020 3.56 0.20 0.02 0.030 5.00 6.40 • 0.04-0.18
PENTA 24N374J020 3.74 0.20 0.02 0.030 5.00 6.40 • 0.04-0.18
PENTA 24N398J020 3.98 0.20 0.02 0.030 5.00 6.20 • 0.04-0.18
PENTA 24N400J040 4.00 0.40 0.02 0.030 5.00 6.20 • 0.04-0.18
PENTA 24N423J010 4.23 0.10 0.02 0.030 5.00 6.20 • 0.04-0.18
• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) For grooving and parting depth relative to part diameter, see page 322
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

319
