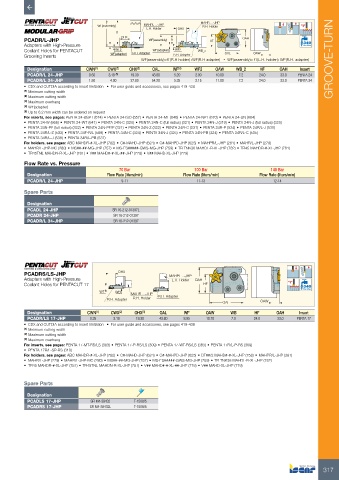

WF(assembly) MAHPL ...-JHP MAHR ...-JHP
R.H. Holder
f1 L.H. Holder OHX
PCADR/L-JHP OHX WF(assembly) f1 HF OAH
Adapters with High-Pressure Bar Max
Coolant Holes for PENTACUT WF2 R.H. Adapter WF(adapter) WF2 WB_2 OAL OAW
Grooving Inserts WF(adapter) R.H. Adapter
WF(assembly)=f1(R.H holder)+WF(R.H adapter) • WF(assembly)= f1(L.H. holder)+WF(R.H. adapter) GROOVE-TURN
Designation CWN (1) CWX (2) OHX (3) OAL WF (4) WF2 OAW WB_2 HF OAH Insert
PCADR/L 24-JHP 0.50 3.18 (5) 19.30 43.80 5.20 2.00 10.00 7.2 24.0 33.0 PENTA 24
PCADR/L 34-JHP 1.50 4.00 27.80 54.20 5.35 2.15 11.00 7.2 24.0 33.0 PENTA 34
• CDX and CUTDIA according to insert limitation • For user guide and accessores, see pages 419-438
(1) Minimum cutting width
(2) Maximum cutting width
(3) Maximum overhang
(4) WF(adapter)
(5) Up to 6.2 mm width can be ordered on request
For inserts, see pages: PENTA 24-BSPT (674) • PENTA 24-ISO (657) • PENTA 24-MT (646) • PENTA 24-NPT (670) • PENTA 24-UN (664)
• PENTA 24-W (668) • PENTA 24-WT (641) • PENTA 24N-C (320) • PENTA 24N-C (full radius) (321) • PENTA 24N-J (319) • PENTA 24N-J (full radius) (320)
• PENTA 24N-PF (full radius) (322) • PENTA 24N-PF/P (321) • PENTA 24N-Z (322) • PENTA 24R-C (531) • PENTA 24R-P (534) • PENTA 24R/L-J (530)
• PENTA 24R/L-Z (533) • PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)
• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)
For holders, see pages: ABC MAHDR-#-XL-JHP (782) • C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • MAHPR/L-JHP (281) • MAHR/L-JHP (279)
• MAHR/L-JHP-MC (280) • MS##-##-MG-JHP (757) • MS-ES#####-GWS-MG-JHP (759) • TR TNK36 MAHDL-R-XL-JHP (782) • TR45 MAHDR-#-XL-JHP (781)
• TR45TNL MAHDN-R-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)
Flow Rate vs. Pressure
70 Bar 70 Bar 100 Bar100 Bar 140 Bar140 Bar
e (lit
Flow Rat
e (lit
Flow Rat
Flow Rat
e (lit
Designation
Designation Flow Rate (liters/min)ers/min) Flow Rate (liters/min)ers/min) Flow Rate (liters/min)ers/min)
PCADR/L 24-JHP
PC ADR/L 24-JHP 9-119-11 11-1311-13 12-14 12-14

Spare Parts
Designation
PCADL 24-JHP SR 16-212-01397L
PCADR 24-JHP SR 16-212-01397
PCADR/L 34-JHP SR 16-212-01397

PCADRS/LS-JHP OHX MAHPL ..-JHP
Adapters with High-Pressure L.H. Holder OAH
Coolant Holes for PENTACUT 17 HF
Bar Max
WF WB MAHR ...-JHP
R.H. Adapter R.H. Holder R.H. Adapter
OAL OAW
Designation CWN (1) CWX (2) OHX (3) OAL WF OAW WB HF OAH Insert
PCADR/LS 17-JHP 0.25 3.18 19.30 43.80 8.95 10.70 7.0 24.0 33.0 PENTA 17
• CDX and CUTDIA according to insert limitation • For user guide and accessores, see pages 419-438
(1) Minimum cutting width
(2) Maximum cutting width
(3) Maximum overhang
For inserts, see pages: PENTA 17-MT-RS/LS (383) • PENTA 17-P-RS/LS (309) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)
• PENTA 17R/L-SP-RS (310)
For holders, see pages: ABC MAHDR-#-XL-JHP (782) • C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • DT##/2 MAHD#-#-XL-JHP (758) • MAHPR/L-JHP (281)
• MAHR/L-JHP (279) • MAHR/L-JHP-MC (280) • MS##-##-MG-JHP (757) • MS-ES#####-GWS-MG-JHP (759) • TR TNK36 MAHDL-R-XL-JHP (782)
• TR45 MAHDR-#-XL-JHP (781) • TR45TNL MAHDN-R-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

Spare Parts

Designation
PCADLS 17-JHP SR M4-39432 T-1508/5
PCADRS 17-JHP SR M4-39432L T-1508/5
