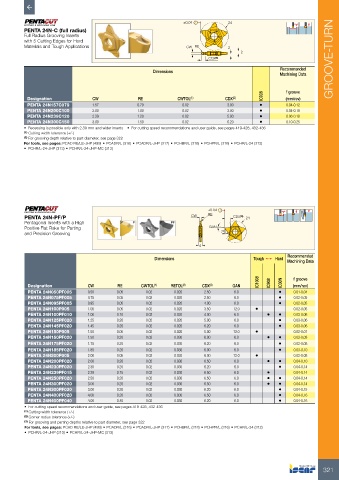

Page 323 - ISCAR(TURNING-CATALOG-42-2022)

±0.04 24
PENTA 24N-C (full radius)
Full Radius Grooving Inserts
with 5 Cutting Edges for Hard
Materials and Tough Applications CW RE 2
2
CDX (2) GROOVE-TURN

Dimensions Recommended
Machining Data

IC908 f groove
Designation CW RE CWTOL (1) CDX (2) (mm/rev)
PENTA 24N157C079 1.57 0.79 0.02 3.00 • 0.04-0.12
PENTA 24N200C100 2.00 1.00 0.02 3.00 • 0.04-0.16
PENTA 24N239C120 2.39 1.20 0.02 5.00 • 0.06-0.18
PENTA 24N300C150 3.00 1.50 0.02 6.20 • 0.10-0.25
• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) For grooving depth relative to part diameter, see page 322
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

±0.04

PENTA 24N-PF/P CW RE CDX (3) 24
Pentagonal Inserts with a High
Positive Flat Rake for Parting GAN
and Precision Grooving 7º
4

Recommended
Dimensions Tough 1 Hard
Machining Data
IC1008 IC908 IC30N f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) GAN (mm/rev)
PENTA 24N050PF005 0.50 0.05 0.02 0.020 2.50 6.0 • 0.01-0.04
PENTA 24N075PF005 0.75 0.05 0.02 0.020 2.50 6.0 • 0.02-0.05
PENTA 24N095PF005 0.95 0.05 0.02 0.020 4.00 6.0 • 0.02-0.05
PENTA 24N100P005 1.00 0.05 0.02 0.020 3.50 12.0 • 0.02-0.05
PENTA 24N100PF010 1.00 0.10 0.02 0.020 4.00 6.0 • • 0.03-0.06
PENTA 24N125PF020 1.25 0.20 0.02 0.020 5.00 6.0 • 0.03-0.06
PENTA 24N145PF020 1.45 0.20 0.02 0.020 6.20 6.0 • 0.03-0.06
PENTA 24N150P005 1.50 0.05 0.02 0.020 5.00 12.0 • 0.02-0.07
PENTA 24N150PF020 1.50 0.20 0.02 0.030 6.00 6.0 • • 0.03-0.09
PENTA 24N175PF020 1.75 0.20 0.02 0.030 6.20 6.0 • 0.02-0.08
PENTA 24N185PF020 1.85 0.20 0.02 0.030 6.00 6.0 • 0.03-0.10
PENTA 24N200P005 2.00 0.05 0.02 0.020 6.00 12.0 • 0.02-0.08
PENTA 24N200PF020 2.00 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.10
PENTA 24N230PF020 2.30 0.20 0.02 0.030 6.20 6.0 • 0.04-0.14
PENTA 24N239PF015 2.39 0.15 0.02 0.030 6.50 6.0 • 0.04-0.14
PENTA 24N250PF020 2.50 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N300PF020 3.00 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N300PF030 3.00 0.30 0.02 0.030 6.20 6.0 • 0.04-0.15
PENTA 24N400PF020 4.00 0.20 0.02 0.030 6.50 6.0 • 0.04-0.16
PENTA 24N400PF040 4.00 0.40 0.02 0.030 6.20 6.0 • 0.04-0.16
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) For grooving and parting depths relative to part diameter, see page 322
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

321
