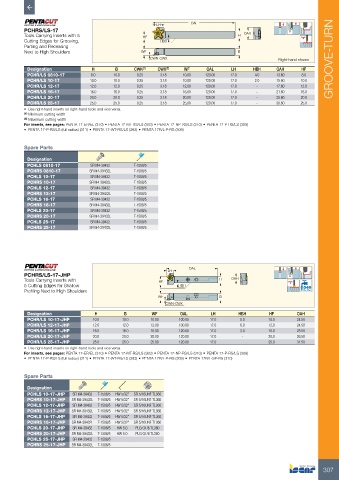

Page 309 - ISCAR(TURNING-CATALOG-42-2022)

LH OAL
PCHRS/LS-17
Tools Carrying Inserts with 5 HF H OAH
Cutting Edges for Grooving, HBH
Parting and Recessing
Next to High Shoulders WF B
CWN-CWX Right-hand shown GROOVE-TURN
Designation H B CWN (1) CWX (2) WF OAL LH HBH OAH HF
PCHR/LS 0810-17 8.0 10.0 0.25 3.18 10.00 120.00 17.0 4.0 13.60 8.0
PCHR/LS 10-17 10.0 10.0 0.25 3.18 10.00 120.00 17.0 2.0 15.60 10.0
PCHR/LS 12-17 12.0 12.0 0.25 3.18 12.00 120.00 17.0 - 17.60 12.0
PCHR/LS 16-17 16.0 16.0 0.25 3.18 16.00 120.00 17.0 - 21.60 16.0
PCHR/LS 20-17 20.0 20.0 0.25 3.18 20.00 120.00 17.0 - 25.60 20.0
PCHR/LS 25-17 25.0 25.0 0.25 3.18 25.00 120.00 17.0 - 30.60 25.0
• Use right-hand inserts on right-hand tools and vice versa
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)

Spare Parts
Designation
PCHLS 0810-17 SR M4-39432 T-1508/5
PCHRS 0810-17 SR M4-39432L T-1508/5
PCHLS 10-17 SR M4-39432 T-1508/5
PCHRS 10-17 SR M4-39432L T-1508/5
PCHLS 12-17 SR M4-39432 T-1508/5
PCHRS 12-17 SR M4-39432L T-1508/5
PCHLS 16-17 SR M4-39432 T-1508/5
PCHRS 16-17 SR M4-39432L T-1508/5
PCHLS 20-17 SR M4-39432 T-1508/5
PCHRS 20-17 SR M4-39432L T-1508/5
PCHLS 25-17 SR M4-39432 T-1508/5
PCHRS 25-17 SR M4-39432L T-1508/5

OAL

PCHRS/LS-17-JHP LH
Tools Carrying Inserts with HF H OAH
5 Cutting Edges for Shallow HBH
Profiling Next to High Shoulders Bar Max
WF B
CWN-CWX
Designation H B WF OAL LH HBH HF OAH
PCHR/LS 10-17-JHP 10.0 10.0 10.00 100.00 17.0 8.0 10.0 24.50
PCHR/LS 12-17-JHP 12.0 12.0 12.00 100.00 17.0 6.0 12.0 24.50
PCHR/LS 16-17-JHP 16.0 16.0 16.00 120.00 17.0 3.0 16.0 25.50
PCHR/LS 20-17-JHP 20.0 20.0 20.00 120.00 17.0 - 20.0 26.50
PCHR/LS 25-17-JHP 25.0 25.0 25.00 120.00 17.0 - 25.0 31.50
• Use right-hand inserts on right-hand tools and vice versa
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309) • PENTA 17R/L-SP-RS (310)

Spare Parts
Designation
PCHLS 10-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 10-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 12-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 12-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 16-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 16-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 20-17-JHP SR M4-39432 T-1508/5 HW 5.0 PLG G1/8 TL360
PCHRS 20-17-JHP SR M4-39432L T-1508/5 HW 5.0 PLG G1/8 TL360
PCHLS 25-17-JHP SR M4-39432 T-1508/5
PCHRS 25-17-JHP SR M4-39432L T-1508/5

307
