±0.025

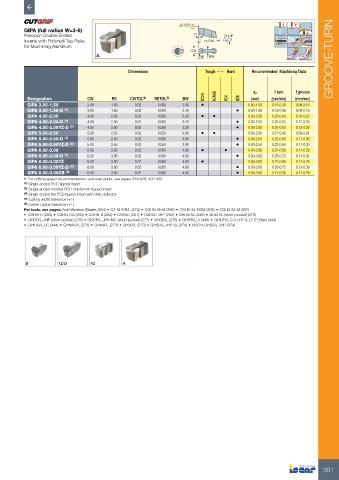

GIPA (full radius W=3-6)
Precision Double-Ended 7°
Inserts with Polished Top Rake 15 Ref. 5
for Machining Aluminum
CW
RE BW GROOVE-TURN

Dimensions Tough 1 Hard Recommended Machining Data

f turn
ap
Designation CW RE CWTOL (4) RETOL (5) BW IC20 IC806 IC4 ID5 (mm) (mm/rev) f groove
(mm/rev)
GIPA 3.00-1.50 3.00 1.50 0.02 0.050 2.40 • 0.00-1.50 0.15-0.30 0.08-0.16
GIPA 3.00-1.50-D (1) 3.00 1.50 0.02 0.050 2.40 • 0.00-1.50 0.19-0.36 0.09-0.19
GIPA 4.00-2.00 4.00 2.00 0.02 0.050 3.20 • • 0.00-2.00 0.20-0.43 0.10-0.22
GIPA 4.00-2.00-D (1) 4.00 2.00 0.02 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26
GIPA 4.00-2.00YZ-D (2) 4.00 2.00 0.02 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26
GIPA 5.00-2.50 5.00 2.50 0.02 0.050 3.90 • • 0.00-2.50 0.21-0.48 0.09-0.24
GIPA 5.00-2.50-D (1) 5.00 2.50 0.02 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30
GIPA 5.00-2.50YZ-D (2) 5.00 2.50 0.02 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30
GIPA 6.00-3.00 6.00 3.00 0.02 0.050 4.80 • • 0.00-3.00 0.21-0.58 0.11-0.29
GIPA 6.00-3.00-D (1) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36
GIPA 6.00-3.00YZ 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29
GIPA 6.00-3.00YZ-D (2) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36
GIPA 6.00-3.00CB (3) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Single-ended PCD tipped insert
(2) Single-ended molded PCD chipformer tipped insert
(3) Single-ended flat PCD tipped insert with chip deflector
(4) Cutting width tolerance (+/-)
(5) Corner radius tolerance (+/-)
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDKR/L (446) • GHDR/L (short pocket) (275)
• GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHIFR/L-A (445) • GHIUR/L-C-A (15° & 27.5°) Bars (444)
• GHIUR/L-UC (444) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)
