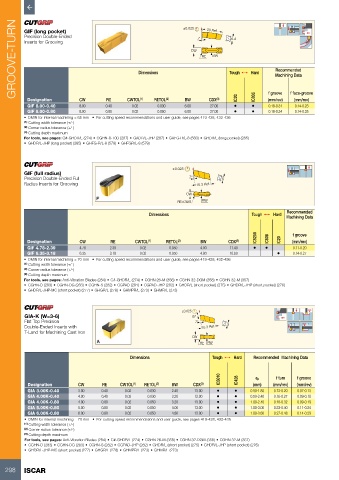

Page 300 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN GIF (long pocket) Dimensions ±0.025 7˚ RE 30 Ref. Tough 1 Hard Machining Data
Precision Double-Ended
6.4
Inserts for Grooving
CW
BW

Recommended

(mm/rev)
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) IC20 IC806 f groove f face-groove
(mm/rev)
GIF 8.00-0.40 8.00 0.40 0.02 0.030 6.00 27.00 • • 0.18-0.31 0.14-0.23
GIF 8.00-0.80 8.00 0.80 0.02 0.050 6.00 27.00 • • 0.18-0.34 0.14-0.25
• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579)

GIF (full radius) ±0.025
Precision Double-Ended Full 7° 5
Radius Inserts for Grooving 15.3 Ref.
CW
RE=CW/2 BW
Recommended
Dimensions Tough 1 Hard
Machining Data

IC8250 IC808 f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) IC20 (mm/rev)
GIF 4.78-2.39 4.78 2.39 0.02 0.050 4.00 11.40 • • 0.11-0.20
GIF 6.35-3.18 6.35 3.18 0.02 0.050 4.80 10.60 • 0.14-0.27
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

±0.025

GIA-K (W=3-6) 15°
Flat Top Precision 7°
Double-Ended Inserts with 15.3 Ref. 5
T-Land for Machining Cast Iron
CW
RE BW

Dimensions Tough 1 Hard Recommended Machining Data

IC5010 IC428 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm) (mm/rev) (mm/rev)
GIA 3.00K-0.40 3.00 0.40 0.02 0.030 2.40 13.00 • • 0.50-1.80 0.12-0.20 0.07-0.13
GIA 4.00K-0.40 4.00 0.40 0.02 0.030 3.20 13.00 • • 0.50-2.40 0.16-0.27 0.09-0.18
GIA 4.00K-0.80 4.00 0.80 0.02 0.050 3.20 13.00 • • 1.00-2.40 0.18-0.32 0.09-0.19
GIA 5.00K-0.80 5.00 0.80 0.02 0.050 4.00 13.00 • • 1.00-3.00 0.23-0.40 0.11-0.24
GIA 6.00K-0.80 6.00 0.80 0.02 0.050 4.80 13.00 • • 1.00-3.60 0.27-0.48 0.14-0.29
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

298 ISCAR
