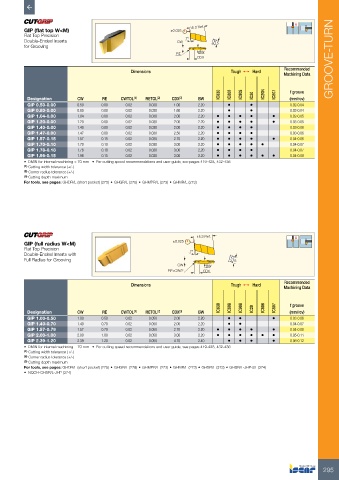

Page 297 - ISCAR(TURNING-CATALOG-42-2022)

GIP (flat top W<M) ±0.025 15.3 Ref.
Flat Top Precision
Double-Ended Inserts CW 7° 5
for Grooving
RE BW
CDX GROOVE-TURN

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC808 IC908 IC20 IC20N IC807 f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) BW (mm/rev)
GIP 0.50-0.00 0.50 0.00 0.02 0.030 1.00 2.20 • • 0.02-0.04
GIP 0.80-0.00 0.80 0.00 0.02 0.030 1.60 2.20 • • 0.02-0.04
GIP 1.04-0.00 1.04 0.00 0.02 0.030 2.00 2.20 • • • • • 0.02-0.05
GIP 1.20-0.00 1.20 0.00 0.02 0.030 2.00 2.20 • • • • • 0.03-0.05
GIP 1.40-0.00 1.40 0.00 0.02 0.030 2.00 2.20 • • • • 0.03-0.06
GIP 1.47-0.00 1.47 0.00 0.02 0.030 2.50 2.20 • • • • 0.03-0.06
GIP 1.57-0.15 1.57 0.15 0.02 0.030 2.70 2.20 • • • • • 0.04-0.06
GIP 1.70-0.10 1.70 0.10 0.02 0.030 3.00 2.20 • • • • • 0.04-0.07
GIP 1.78-0.18 1.78 0.18 0.02 0.030 3.00 2.20 • • • • 0.04-0.07
GIP 1.96-0.15 1.96 0.15 0.02 0.030 3.00 2.20 • • • • • • 0.04-0.08
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: GHDR/L (short pocket) (275) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

15.3 Ref.

GIP (full radius W<M) ±0.025
Flat Top Precision 7°
Double-Ended Inserts with
Full Radius for Grooving 5
CW BW
RE=CW/2 CDX
Recommended
Dimensions Tough 1 Hard
Machining Data

IC830 IC808 IC908 IC20 IC806 IC807 f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) BW (mm/rev)
GIP 1.00-0.50 1.00 0.50 0.02 0.050 2.00 2.20 • • • 0.03-0.06
GIP 1.40-0.70 1.40 0.70 0.02 0.050 2.00 2.20 • • 0.04-0.07
GIP 1.57-0.79 1.57 0.79 0.02 0.050 2.70 2.20 • • • • • 0.04-0.08
GIP 2.00-1.00 2.00 1.00 0.02 0.050 3.00 2.20 • • • • • • 0.05-0.11
GIP 2.39-1.20 2.39 1.20 0.02 0.050 4.70 2.40 • • • • 0.06-0.12
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: GHDR/L (short pocket) (275) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374)
• NQCH-GHSR/L-JHP (374)

295
