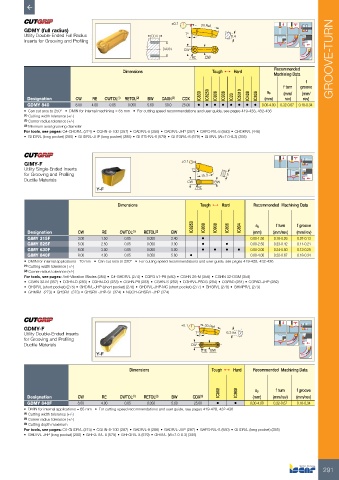

Page 293 - ISCAR(TURNING-CATALOG-42-2022)

±0.1
GDMY (full radius) 30 Ref.
Utility Double-Ended Full Radius CDX 7° 6.4
Inserts for Grooving and Profiling
DAXN CW
RE BW GROOVE-TURN

Dimensions Tough 1 Hard Recommended
Machining Data
f
f turn groove
IC830 IC8250 IC808 IC908 IC5010 IC428 IC806 ap (mm/ (mm/
Designation CW RE CWTOL (1) RETOL (2) BW DAXN (3) CDX IC20 (mm) rev) rev)
GDMY 840 8.00 4.00 0.05 0.050 5.60 50.0 25.00 • • • • • • • • 0.00-4.00 0.32-0.67 0.18-0.34
• Can cut arcs to 250° • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Minimum axial grooving diameter
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDKR/L (446)
• GHDR/L (long pocket) (285) • GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GIMY-F ±0.1
Utility Single-Ended Inserts 7°
for Grooving and Profiling 15.3 5
Ductile Materials CW BW
RE

Dimensions Tough 1 Hard Recommended Machining Data

IC8250 IC808 IC908 IC806 IC804 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW (mm) (mm/rev) (mm/rev)
GIMY 315F 3.00 1.50 0.05 0.050 2.40 • 0.00-1.50 0.18-0.26 0.07-0.13
GIMY 525F 5.00 2.50 0.05 0.050 3.90 • • 0.00-2.50 0.23-0.42 0.11-0.21
GIMY 630F 6.00 3.00 0.05 0.050 5.00 • • • • 0.00-3.00 0.24-0.50 0.13-0.25
GIMY 840F 8.00 4.00 0.05 0.050 5.60 • 0.00-4.00 0.32-0.67 0.18-0.34
• DMIN for internal applications =70 mm • Can cut arcs to 250° • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGFG 51-P8 (580) • CGHN 26-M (356) • CGHN 32-DGM (358)
• CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283) • CGHN-P8 (283) • CGHN-S (282) • CGHR/L-P8DG (284) • CGPAD (281) • CGPAD-JHP (282)
• GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273)
• GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

GDMY-F ±0.1 30 Ref.
Utility Double-Ended Inserts 7º 6.3 Ref.
for Grooving and Profiling
Ductile Materials CW
RE BW

Dimensions Tough 1 Hard Recommended Machining Data

IC808 IC908 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm) (mm/rev) (mm/rev)
GDMY 840F 8.00 4.00 0.05 0.050 5.60 25.00 • • 0.00-4.00 0.32-0.67 0.18-0.34
• DMIN for internal applications = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

291
