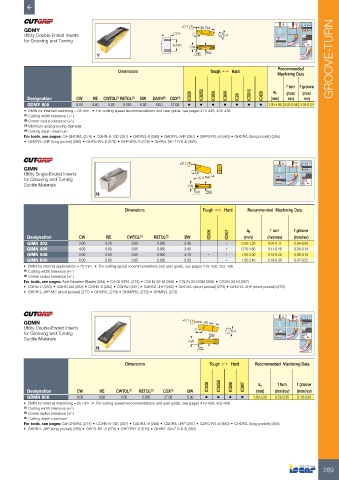

Page 291 - ISCAR(TURNING-CATALOG-42-2022)

GDMY ±0.1 30 Ref.
Utility Double-Ended Inserts CDX 7° 6.4
for Grooving and Turning
DAXN CW
RE BW GROOVE-TURN

Recommended
Dimensions Tough 1 Hard
Machining Data
f turn f groove
ap
rev)
rev)
(1)
Designation CW RE CWTOL RETOL (2) BW DAXN (3) CDX (4) IC830 IC8250 IC808 IC908 IC20 IC5010 IC428 (mm) (mm/ (mm/
GDMY 808 8.00 0.80 0.05 0.050 6.00 50.0 27.00 • • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34
• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Minimum axial grooving diameter
(4) Cutting depth maximum
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

±0.1
GIMN 7°
Utility Single-Ended Inserts
for Grooving and Turning 15.3 Ref.
Ductile Materials CW
RE BW

Dimensions Tough 1 Hard Recommended Machining Data

IC908 IC907 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW (mm) (mm/rev) (mm/rev)
GIMN 302 3.00 0.20 0.05 0.050 2.40 • 0.30-1.20 0.07-0.11 0.04-0.09
GIMN 406 4.00 0.60 0.05 0.050 3.40 • 0.75-1.60 0.11-0.18 0.05-0.14
GIMN 508 5.00 0.80 0.05 0.050 4.10 • • 1.00-2.00 0.15-0.25 0.06-0.18
GIMN 608 6.00 0.80 0.05 0.050 5.00 • 1.00-2.40 0.18-0.30 0.07-0.22
• DMIN for internal applications = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GDMN ±0.1 30 Ref.
Utility Double-Ended Inserts 7°
for Grooving and Turning BW 6.4
Ductile Materials
CW
RE

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC8250 IC808 IC907 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) BW (mm) (mm/rev) (mm/rev)
GDMN 808 8.00 0.80 0.05 0.050 27.00 6.00 • • • • 1.00-3.20 0.20-0.35 0.10-0.30
• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)
