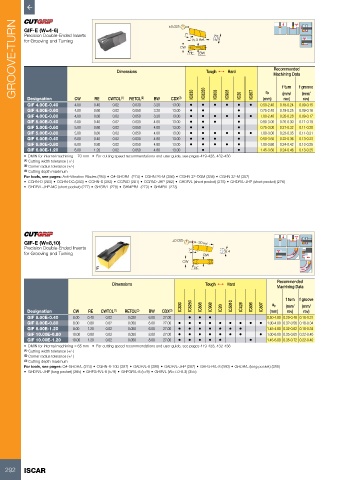

Page 294 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN GIF-E (W=4-6) Dimensions ±0.025 CW 7° RE 15.3 Ref. Tough 1 Hard Machining Data
Precision Double-Ended Inserts
5
for Grooving and Turning
BW

Recommended

f turn
ap
(mm/
(mm/
Designation
rev)
rev)
(mm)
RE
4.00
GIF 4.00E-0.40 CW 0.40 CWTOL (1) RETOL (2) BW CDX (3) • IC830 • IC8250 • IC808 • IC908 • IC20 • IC807 0.50-2.40 0.18-0.24 f groove
13.00
0.09-0.15
3.20
0.02
0.030
GIF 4.00E-0.60 4.00 0.60 0.02 0.050 3.20 13.00 • • • 0.75-2.40 0.19-0.25 0.09-0.16
GIF 4.00E-0.80 4.00 0.80 0.02 0.050 3.20 13.00 • • • • • • 1.00-2.40 0.20-0.28 0.09-0.17
GIF 5.00E-0.40 5.00 0.40 0.02 0.030 4.00 13.00 • • • • 0.50-3.00 0.20-0.30 0.11-0.19
GIF 5.00E-0.60 5.00 0.60 0.02 0.050 4.00 13.00 • • • 0.75-3.00 0.21-0.32 0.11-0.20
GIF 5.00E-0.80 5.00 0.80 0.02 0.050 4.00 13.00 • • • • • • 1.00-3.00 0.23-0.35 0.11-0.21
GIF 6.00E-0.40 6.00 0.40 0.02 0.030 4.80 13.00 • • • • 0.50-3.60 0.22-0.36 0.13-0.23
GIF 6.00E-0.80 6.00 0.80 0.02 0.050 4.80 13.00 • • • • • 1.00-3.60 0.24-0.42 0.13-0.25
GIF 6.00E-1.20 6.00 1.20 0.02 0.050 4.80 13.00 • • 1.45-3.60 0.24-0.46 0.13-0.25
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIF-E (W=8,10) ±0.025 30 Ref.
Precision Double-Ended Inserts 7°
for Grooving and Turning BW 6.4
CW
RE

Recommended
Dimensions Tough 1 Hard
Machining Data
f turn f groove
IC830 IC8250 IC808 IC908 IC20 IC5010 IC428 IC806 IC807 ap (mm/ (mm/
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm) rev) rev)
GIF 8.00E-0.40 8.00 0.40 0.02 0.030 6.00 27.00 • • • 0.50-4.80 0.29-0.48 0.18-0.31
GIF 8.00E-0.80 8.00 0.80 0.02 0.050 6.00 27.00 • • • • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34
GIF 8.00E-1.20 8.00 1.20 0.02 0.050 6.00 27.00 • • • • • • • 1.45-4.80 0.32-0.62 0.18-0.34
GIF 10.00E-0.80 10.00 0.80 0.02 0.050 8.00 27.00 • • • • • • • • 1.00-6.00 0.35-0.65 0.22-0.40
GIF 10.00E-1.20 10.00 1.20 0.02 0.050 8.00 27.00 • • • • • • 1.45-6.00 0.35-0.72 0.22-0.40
• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

292 ISCAR
