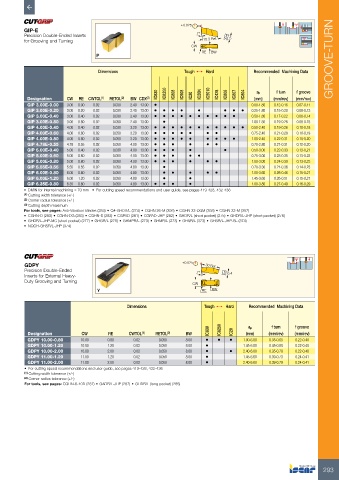

Page 295 - ISCAR(TURNING-CATALOG-42-2022)
P. 295
±0.025
GIP-E
Precision Double-Ended Inserts 7° 5
for Grooving and Turning 15.3 Ref.
CW
RE BW GROOVE-TURN
Dimensions Tough 1 Hard Recommended Machining Data
IC830 IC8250 IC808 IC908 IC20 IC20N IC5010 IC428 IC806 IC807 IC804 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW CDX (3) (mm) (mm/rev) (mm/rev)
GIP 3.00E-0.00 3.00 0.00 0.02 0.030 2.40 13.00 • 0.00-1.80 0.12-0.16 0.07-0.11
GIP 3.00E-0.20 3.00 0.20 0.02 0.030 2.40 13.00 • • • • • • • • 0.25-1.80 0.15-0.20 0.08-0.13
GIP 3.00E-0.40 3.00 0.40 0.02 0.030 2.40 13.00 • • • • • • • • • • 0.50-1.80 0.17-0.22 0.08-0.14
GIP 3.00E-0.80 3.00 0.80 0.02 0.050 2.40 13.00 • 1.00-1.80 0.19-0.26 0.08-0.15
GIP 4.00E-0.40 4.00 0.40 0.02 0.030 3.20 13.00 • • • • • • • • • • • 0.50-2.40 0.19-0.26 0.10-0.18
GIP 4.00E-0.60 4.00 0.60 0.02 0.050 3.20 13.00 • • • • • • • 0.75-2.40 0.21-0.28 0.10-0.19
GIP 4.00E-0.80 4.00 0.80 0.02 0.050 3.20 13.00 • • • • • • • • • 1.00-2.40 0.22-0.31 0.10-0.20
GIP 4.78E-0.55 4.78 0.55 0.02 0.050 4.00 13.00 • • • • • • 0.70-2.80 0.21-0.31 0.12-0.20
GIP 5.00E-0.40 5.00 0.40 0.02 0.030 4.00 13.00 • • • • • 0.50-3.00 0.22-0.33 0.13-0.21
GIP 5.00E-0.60 5.00 0.60 0.02 0.050 4.00 13.00 • • • • • 0.75-3.00 0.23-0.35 0.13-0.22
GIP 5.00E-0.80 5.00 0.80 0.02 0.050 4.00 13.00 • • • • • • 1.00-3.00 0.24-0.39 0.13-0.23
GIP 5.55E-0.55 5.55 0.55 0.02 0.050 4.80 13.00 • 0.70-3.30 0.21-0.36 0.14-0.23
GIP 6.00E-0.80 6.00 0.80 0.02 0.050 4.80 13.00 • • • • • 1.00-3.60 0.26-0.46 0.15-0.27
GIP 6.00E-1.20 6.00 1.20 0.02 0.050 4.80 13.00 • • 1.45-3.60 0.26-0.51 0.15-0.27
GIP 6.35E-0.80 6.35 0.80 0.02 0.050 4.80 13.00 • • • • 1.00-3.80 0.27-0.49 0.16-0.29
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)
• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374)
• NQCH-GHSR/L-JHP (374)
GDPY ±0.025 30 Ref.
Precision Double-Ended 7° 6.4
Inserts for External Heavy-
Duty Grooving and Turning CW
RE BW
Dimensions Tough 1 Hard Recommended Machining Data
IC830 IC8250 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) BW IC20 (mm) (mm/rev) (mm/rev)
GDPY 10.00-0.80 10.00 0.80 0.02 0.050 8.00 • • • 1.00-6.00 0.35-0.65 0.22-0.40
GDPY 10.00-1.20 10.00 1.20 0.02 0.050 8.00 • 1.45-6.00 0.45-0.80 0.22-0.40
GDPY 10.00-2.00 10.00 2.00 0.02 0.050 8.00 • • 2.40-6.00 0.35-0.78 0.22-0.40
GDPY 11.00-1.20 11.00 1.20 0.02 0.050 8.00 • 1.45-6.60 0.39-0.73 0.24-0.41
GDPY 11.00-2.00 11.00 2.00 0.02 0.050 8.00 • 2.40-6.60 0.39-0.79 0.24-0.41
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: CGHN-8-10D (287) • GADR/L-JHP (287) • GHDR/L (long pocket) (285)
293
