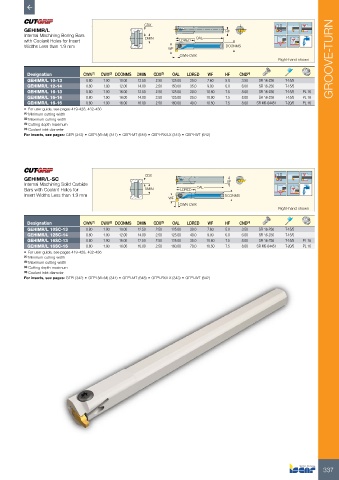

Page 339 - ISCAR(TURNING-CATALOG-42-2022)

CDX
GEHIMR/L HF
Internal Machining Boring Bars DMIN OAL
with Coolant Holes for Insert LDRED
Widths Less than 1.9 mm WF DCONMS
CWN-CWX
Right-hand shown GROOVE-TURN

Designation CWN (1) CWX (2) DCONMS DMIN CDX (3) OAL LDRED WF HF CND (4)
GEHIMR/L 10-13 0.80 1.90 10.00 12.50 2.50 125.00 25.0 7.60 5.0 3.50 SR 16-236 T-15/5
GEHIMR/L 12-14 0.80 1.90 12.00 14.00 2.50 150.00 35.0 9.00 6.0 6.00 SR 16-236 T-15/5
GEHIMR/L 16-13 0.80 1.90 16.00 12.50 2.50 125.00 20.0 10.60 7.5 8.00 SR 16-236 T-15/5 PL 16
GEHIMR/L 16-14 0.80 1.90 16.00 14.00 2.50 125.00 25.0 10.90 7.5 8.00 SR 16-236 T-15/5 PL 16
GEHIMR/L 16-16 0.80 1.90 16.00 16.00 2.50 160.00 40.0 10.50 7.5 8.00 SR M5-04451 T-20/5 PL 16
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Coolant inlet diameter
For inserts, see pages: GEPI (342) • GEPI (W<M) (341) • GEPI-MT (648) • GEPI-RX/LX (343) • GEPI-WT (642)

GEHIMR/L-SC CDX
Internal Machining Solid Carbide HF
Bars with Coolant Holes for DMIN LDRED OAL
Insert Widths Less than 1.9 mm DCONMS
WF
CWN-CWX
Right-hand shown

Designation CWN (1) CWX (2) DCONMS DMIN CDX (3) OAL LDRED WF HF CND (4)
GEHIMR/L 10SC-13 0.80 1.90 10.00 12.50 2.50 125.00 30.0 7.60 5.0 3.50 SR 16-236 T-15/5
GEHIMR/L 12SC-14 0.80 1.90 12.00 14.00 2.50 125.00 40.0 9.00 6.0 6.00 SR 16-236 T-15/5
GEHIMR/L 16SC-13 0.80 1.90 16.00 12.50 2.50 125.00 35.0 10.60 7.5 8.00 SR 16-236 T-15/5 PL 16
GEHIMR/L 16SC-16 0.80 1.90 16.00 16.00 2.50 160.00 70.0 10.50 7.5 8.00 SR M5-04451 T-20/5 PL 16
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Coolant inlet diameter
For inserts, see pages: GEPI (342) • GEPI (W<M) (341) • GEPI-MT (648) • GEPI-RX/LX (343) • GEPI-WT (642)

337
