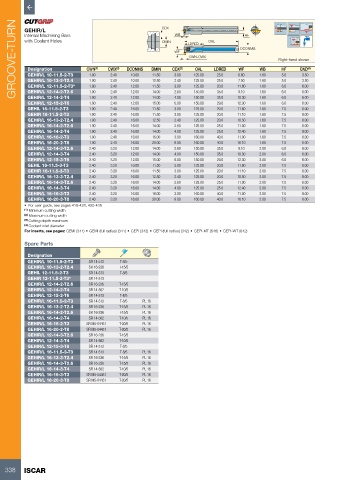

Page 340 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN GEHIR/L CWN (1) CWX (2) DCONMS DMIN CDX CDX (3) LDRED OAL LDRED 8.80 HF WB Right-hand shown (4)

Internal Machining Bars
WB
with Coolant Holes
DMIN
DCONMS
WF
CWN-CWX
WF
OAL
Designation
CND
HF
3.00
25.0
11.50
125.00
10.00
5.0
2.40
1.90
3.50
1.60
GEHIR/L 10-11.5-2-T3
GEHIR/L 10-13-2-T2.4
2.40
10.00
1.90
12.50
1.60
5.0
3.50
7.50
2.40
125.00
25.0
GEHIR/L 12-11.5-2-T3*
GEHIR/L 12-14-2-T2.6
9.10
12.00
1.90
150.00
35.0
2.60
1.60
2.40
6.00
6.0
14.00
14.00
12.00
150.00
1.90
2.40
4.00
10.30
35.0
1.60
6.0
GEHIR/L 12-14-2-T4
6.00
1.60
6.00
6.0
12.00
6.00
GEHIR/L 12-15-2-T6 1.90 2.40 12.00 11.50 3.00 125.00 20.0 11.60 1.60 6.0 6.00
150.00
15.00
12.30
29.0
2.40
1.90
GEHIL 16-11.5-2-T3 1.90 2.40 16.00 11.50 3.00 125.00 20.0 11.60 1.60 7.5 8.00
GEHIR 16-11.5-2-T3 1.90 2.40 16.00 11.50 3.00 125.00 20.0 11.10 1.60 7.5 8.00
GEHIR/L 16-13-2-T2.4 1.90 2.40 16.00 12.50 2.40 125.00 20.0 10.50 1.60 7.5 8.00
GEHIR/L 16-14-2-T2.6 1.90 2.40 16.00 14.00 2.60 125.00 25.0 11.00 1.60 7.5 8.00
GEHIR/L 16-14-2-T4 1.90 2.40 16.00 14.00 4.00 125.00 25.0 12.40 1.60 7.5 8.00
GEHIR/L 16-16-2-T3 1.90 2.40 16.00 16.00 3.00 160.00 40.0 11.00 1.60 7.5 8.00
GEHIR/L 16-20-2-T8 1.90 2.40 16.00 20.00 8.00 160.00 40.0 16.10 1.60 7.5 8.00
GEHIR/L 12-14-3-T2.6 2.40 3.20 12.00 14.00 2.60 150.00 35.0 9.10 2.00 6.0 6.00
GEHIR/L 12-14-3-T4 2.40 3.20 12.00 14.00 4.00 150.00 35.0 10.30 2.00 6.0 6.00
GEHIR/L 12-15-3-T6 2.40 3.20 12.00 15.00 6.00 150.00 29.0 12.30 2.00 6.0 6.00
GEHIL 16-11.5-3-T3 2.40 3.20 16.00 11.50 3.00 125.00 20.0 11.60 2.00 7.5 8.00
GEHIR 16-11.5-3-T3 2.40 3.20 16.00 11.50 3.00 125.00 20.0 11.10 2.00 7.5 8.00
GEHIR/L 16-13-3-T2.4 2.40 3.20 16.00 12.50 2.40 125.00 20.0 10.50 2.00 7.5 8.00
GEHIR/L 16-14-3-T2.6 2.40 3.20 16.00 14.00 2.60 125.00 25.0 11.00 2.00 7.5 8.00
GEHIR/L 16-14-3-T4 2.40 3.20 16.00 14.00 4.00 125.00 25.0 12.40 2.00 7.5 8.00
GEHIR/L 16-16-3-T3 2.40 3.20 16.00 16.00 3.00 160.00 40.0 11.00 2.00 7.5 8.00
GEHIR/L 16-20-3-T8 2.40 3.20 16.00 20.00 8.00 160.00 40.0 16.10 2.00 7.5 8.00
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Coolant inlet diameter
For inserts, see pages: GEMI (341) • GEMI (full radius) (341) • GEPI (342) • GEPI (full radius) (342) • GEPI-MT (648) • GEPI-WT (642)

Spare Parts
Designation
GEHIR/L 10-11.5-2-T3 SR 14-513 T-8/5
GEHIR/L 10-13-2-T2.4 SR 16-236 T-15/5
GEHIL 12-11.5-2-T3 SR 14-513 T-8/5
GEHIR 12-11.5-2-T3* SR 14-513
GEHIR/L 12-14-2-T2.6 SR 16-236 T-15/5
GEHIR/L 12-14-2-T4 SR 14-562 T-10/5
GEHIR/L 12-15-2-T6 SR 14-513 T-8/5
GEHIR/L 16-11.5-2-T3 SR 14-513 T-8/5 PL 16
GEHIR/L 16-13-2-T2.4 SR 16-236 T-15/5 PL 16
GEHIR/L 16-14-2-T2.6 SR 16-236 T-15/5 PL 16
GEHIR/L 16-14-2-T4 SR 14-562 T-10/5 PL 16
GEHIR/L 16-16-2-T3 SR M5-04451 T-20/5 PL 16
GEHIR/L 16-20-2-T8 SR M5-04451 T-20/5 PL 16
GEHIR/L 12-14-3-T2.6 SR 16-236 T-15/5
GEHIR/L 12-14-3-T4 SR 14-562 T-10/5
GEHIR/L 12-15-3-T6 SR 14-513 T-8/5
GEHIR/L 16-11.5-3-T3 SR 14-513 T-8/5 PL 16
GEHIR/L 16-13-3-T2.4 SR 16-236 T-15/5 PL 16
GEHIR/L 16-14-3-T2.6 SR 16-236 T-15/5 PL 16
GEHIR/L 16-14-3-T4 SR 14-562 T-10/5 PL 16
GEHIR/L 16-16-3-T3 SR M5-04451 T-20/5 PL 16
GEHIR/L 16-20-3-T8 SR M5-04451 T-20/5 PL 16
