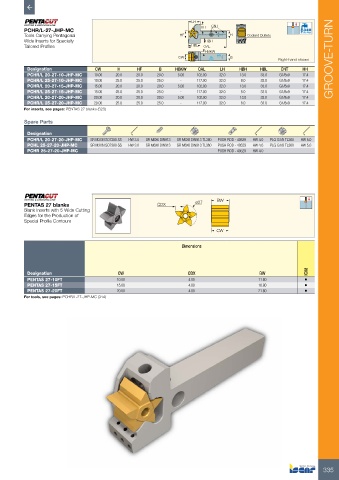

Page 337 - ISCAR(TURNING-CATALOG-42-2022)

LH
PCHR/L-27-JHP-MC HH CNT
Tools Carrying Pentagonal HF H Coolant Outlets Bar Max
Wide Inserts for Specially HBH
Tailored Profiles HBL OAL
HBKW
CW B
Right-hand shown GROOVE-TURN
Designation CW H HF B HBKW OAL LH HBH HBL CNT HH
PCHR/L 20-27-10-JHP-MC 10.00 20.0 20.0 20.0 5.00 102.00 32.0 13.0 33.0 G1/8x9 17.4
PCHR/L 25-27-10-JHP-MC 10.00 25.0 25.0 25.0 - 117.00 32.0 8.0 33.0 G1/8x9 17.4
PCHR/L 20-27-15-JHP-MC 15.00 20.0 20.0 20.0 5.00 102.00 32.0 13.0 33.0 G1/8x9 17.4
PCHR/L 25-27-15-JHP-MC 15.00 25.0 25.0 25.0 - 117.00 32.0 8.0 33.0 G1/8x9 17.4
PCHR/L 20-27-20-JHP-MC 20.00 20.0 20.0 20.0 5.00 102.00 32.0 13.0 33.0 G1/8x9 17.4
PCHR/L 25-27-20-JHP-MC 20.00 25.0 25.0 25.0 - 117.00 32.0 8.0 33.0 G1/8x9 17.4
For inserts, see pages: PENTAS 27 blanks (323)

Spare Parts

Designation
PCHR/L 20-27-20-JHP-MC SR M3X6 ISO7380 SS HW 3.0 SR M6X6 DIN913 SR M6X6 DIN913 TL360 PUSH ROD - 40529 HW 4.0 PLG G1/8 TL360 HW 5.0
PCHL 25-27-20-JHP-MC SR M3X6 ISO7380 SS HW 3.0 SR M6X6 DIN913 SR M6X6 DIN913 TL360 PUSH ROD - 40529 HW 4.0 PLG G1/8 TL360 HW 5.0
PCHR 25-27-20-JHP-MC PUSH ROD - 40529 HW 4.0

PENTAS 27 blanks CDX ø27 BW
Blank Inserts with 5 Wide Cutting
Edges for the Production of
Special Profile Contours
CW

Dimensions

Designation CW CDX BW IC08
PENTAS 27-10FT 10.00 4.00 11.80 •
PENTAS 27-15FT 15.00 4.00 16.80 •
PENTAS 27-20FT 20.00 4.00 21.80 •
For tools, see pages: PCHR/L-27-JHP-MC (314)
