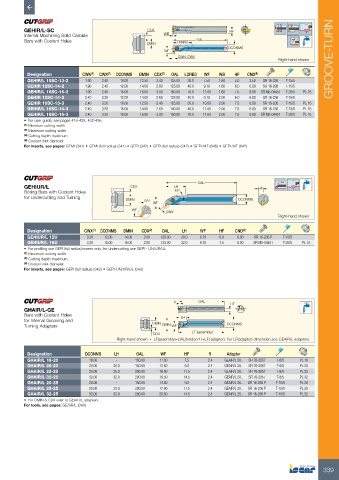

Page 341 - ISCAR(TURNING-CATALOG-42-2022)

GEHIR/L-SC CDX HF
Internal Machining Solid Carbide WB
Bars with Coolant Holes DMIN LDRED OAL
DCONMS
WF
CWN-CWX
Right-hand shown GROOVE-TURN

Designation CWN (1) CWX (2) DCONMS DMIN CDX (3) OAL LDRED WF WB HF CND (4)
GEHIR/L 10SC-13-2 1.90 2.40 10.00 12.50 2.40 125.00 30.0 7.50 1.60 5.0 3.50 SR 16-236 T-15/5
GEHIR 12SC-14-2 1.90 2.40 12.00 14.00 2.60 125.00 40.0 9.10 1.60 6.0 6.00 SR 16-236 T-15/5
GEHIR/L 16SC-16-2 1.90 2.40 16.00 16.00 3.00 160.00 70.0 11.00 1.60 7.5 8.00 SR M5-04451 T-20/5 PL 16
GEHIR 12SC-14-3 2.40 3.20 12.00 14.00 2.60 125.00 40.0 9.10 2.00 6.0 6.00 SR 16-236 T-15/5
GEHIR 16SC-13-3 2.40 3.20 16.00 12.50 2.40 125.00 35.0 10.50 2.00 7.5 8.00 SR 16-236 T-15/5 PL 16
GEHIR/L 16SC-14-3 2.40 3.20 16.00 14.00 2.60 140.00 40.0 11.00 2.00 7.5 8.00 SR 16-236 T-15/5 PL 16
GEHIR/L 16SC-16-3 2.40 3.20 16.00 16.00 3.00 160.00 70.0 11.00 2.00 7.5 8.00 SR M5-04451 T-20/5 PL 16
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Coolant inlet diameter
For inserts, see pages: GEMI (341) • GEMI (full radius) (341) • GEPI (342) • GEPI (full radius) (342) • GEPI-MT (648) • GEPI-WT (642)

GEHIUR/L CDX LH OAL HF
Boring Bars with Coolant Holes 45°
for Undercutting and Turning DMIN DCONMS
OAL
WF
WF
CWX
Right-hand shown
Designation CWX (1) DCONMS DMIN CDX (2) OAL LH WF HF CND (3)
GEHIUR/L 12U 3.20 12.00 14.00 2.00 125.00 20.0 8.70 6.0 6.00 SR 16-236 P T-15/5
GEHIUR/L 16U 3.20 16.00 16.00 2.00 125.00 32.0 9.70 7.5 8.00 SR M5-04451 T-20/5 PL 16
• For profiling use GEPI (full radius) inserts only, for undercutting use GEPI - UN/UR/UL
(1) Maximum cutting width
(2) Cutting depth maximum
(3) Coolant inlet diameter
For inserts, see pages: GEPI (full radius) (342) • GEPI-UN/UR/UL (343)

f1 OAL HF
GHAIR/L-GE
Bars with Coolant Holes LH
for Internal Grooving and DMIN
Turning Adapters DMIN WF DCONMS
CDX LF (assembly)
Right-hand shown • LF(assembly)=OAL(holder)-f1+LF( adapter). For LF(adapter) dimension,see GEAIR/L adapters

Designation DCONMS LH OAL WF HF f1 Adapter
GHAIR/L 16-20 16.00 - 150.00 11.50 7.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 16
GHAIR/L 20-20 20.00 20.0 150.00 13.50 9.0 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 20
GHAIR/L 25-20 25.00 25.0 200.00 16.00 11.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 25
GHAIR/L 32-20 32.00 32.0 200.00 19.50 14.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 32
GHAIR/L 20-25 20.00 - 150.00 14.50 9.0 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 20
GHAIR/L 25-25 25.00 25.0 200.00 17.00 11.5 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 25
GHAIR/L 32-25 32.00 32.0 200.00 20.50 14.5 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 32
• For DMIN & CDX refer to GEAIR/L adapters
For tools, see pages: GEAIR/L (340)

339
