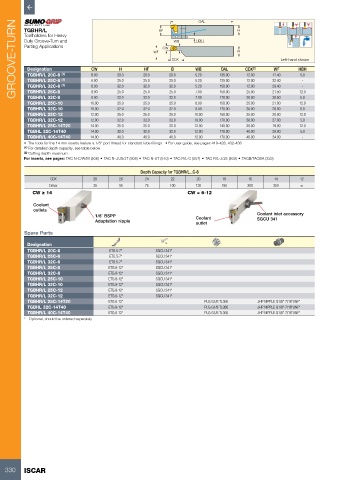

Page 332 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN TGBHR/L CW 20.0 20.0 WF HF CW 20.0 WB WB 135.00 H B CDX (2) 17.40 Left-hand shown
OAL
Toolholders for Heavy
Duty Groove-Turn and
HBH
Parting Applications

CDX
H
Designation
HF
B
OAL
WF
HBH
(1)
12.00
5.20
5.0
TGBHR/L 20C-6
6.00
TGBHR/L 25C-6
(1)
25.0
25.0
25.0
6.00
22.40
12.00
135.00
5.20
-
TGBHR/L 32C-6
6.00
-
TGBHR/L 25C-8
25.0
7.00
21.50
150.00
25.0
25.0
8.00
25.00
28.50
30.00
8.00
32.0
32.0
5.0
32.0
TGBHR/L 32C-8
170.00
7.00
21.00
25.0
150.00
TGBHR/L 25C-10 (1) 10.00 32.0 32.0 32.0 5.20 150.00 12.00 29.40 12.0
8.00
25.0
25.00
12.0
25.0
TGBHR/L 32C-10 10.00 32.0 32.0 32.0 8.00 170.00 30.00 28.00 5.0
TGBHR/L 25C-12 12.00 25.0 25.0 25.0 10.00 150.00 25.00 20.00 12.0
TGBHR/L 32C-12 12.00 32.0 32.0 32.0 10.00 170.00 30.00 27.00 5.0
TGBHR/L 25C-14T20 14.00 25.0 25.0 25.0 12.00 140.00 20.00 19.00 12.0
TGBHL 32C-14T40 14.00 32.0 32.0 32.0 12.00 170.00 40.00 26.00 5.0
TGBHR/L 40C-14T40 14.00 40.0 40.0 40.0 12.00 170.00 40.00 34.00 -
• The tools for the 14 mm inserts feature a 1/8" port thread for standard tube fittings • For user guide, see pages 419-428, 432-436
(1) For detailed depth capacity, see table below
(2) Cutting depth maximum
For inserts, see pages: TAG N-C/W/M (506) • TAG N-J/JS/JT (508) • TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)
Depth Capacity for TGBHR/L...C-6
CDX 28 26 24 22 20 18 16 14 12
Dmax 35 55 75 100 120 150 200 350 ∞
CW ≥ 14 CW = 6-12
Coolant
outlets
1/8” BSPP Coolant Coolant inlet accessory
Adaptation nipple SGCU 341
outlet
Spare Parts
Designation
TGBHR/L 20C-6 ETG 5-7* SGCU 341*
TGBHR/L 25C-6 ETG 5-7* SGCU 341*
TGBHR/L 32C-6 ETG 5-7* SGCU 341*
TGBHR/L 25C-8 ETG 8-12* SGCU 341*
TGBHR/L 32C-8 ETG 8-12* SGCU 341*
TGBHR/L 25C-10 ETG 8-12* SGCU 341*
TGBHR/L 32C-10 ETG 8-12* SGCU 341*
TGBHR/L 25C-12 ETG 8-12* SGCU 341*
TGBHR/L 32C-12 ETG 8-12* SGCU 341*
TGBHR/L 25C-14T20 ETG 8-12* PLG G1/8 TL360 JHP NIPPLE G1/8"-7/16"UNF*
TGBHL 32C-14T40 ETG 8-12* PLG G1/8 TL360 JHP NIPPLE G1/8"-7/16"UNF*
TGBHR/L 40C-14T40 ETG 8-12* PLG G1/8 TL360 JHP NIPPLE G1/8"-7/16"UNF*
* Optional, should be ordered separately
330 ISCAR
