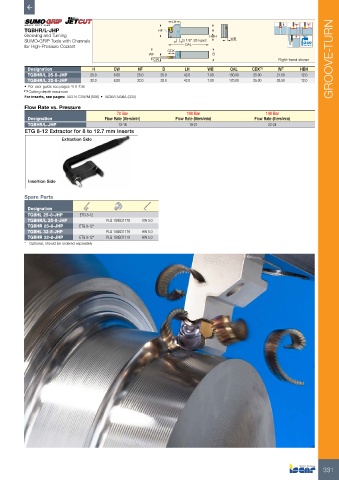

Page 333 - ISCAR(TURNING-CATALOG-42-2022)

LH
TGBHR/L-JHP HF H
Grooving and Turning HBH
SUMO-GRIP Tools with Channels G 1/8"-28 typx2 WB
for High-Pressure Coolant OAL Bar Max
CDX
WF B
CW Right-hand shown GROOVE-TURN
Designation H CW HF B LH WB OAL CDX (1) WF HBH
TGBHR/L 25-8-JHP 25.0 8.00 25.0 25.0 42.0 7.00 150.00 25.00 21.50 12.0
TGBHR/L 32-8-JHP 32.0 8.00 32.0 32.0 42.0 7.00 170.00 25.00 28.50 12.0
• For user guide see pages 419-436
(1) Cutting depth maximum
For inserts, see pages: TAG N-C/W/M (506) • TAGB/TAGBA (333)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
TGBHR/L-JHP 13-16 19-21 22-24
ETG 8-12 Extractor for 8 to 12.7 mm Inserts
Extraction Side

Insertion Side

Spare Parts

Designation
TGBHL 25-8-JHP ETG 8-12
TGBHR/L 25-8-JHP PLG 1/8ISO1179 HW 5.0
TGBHR 25-8-JHP ETG 8-12*
TGBHL 32-8-JHP PLG 1/8ISO1179 HW 5.0
TGBHR 32-8-JHP ETG 8-12* PLG 1/8ISO1179 HW 5.0
* Optional, should be ordered separately

331
