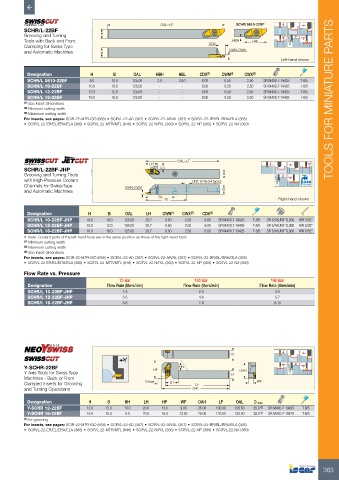

Page 365 - ISCAR(TURNING-CATALOG-42-2022)

OAL=LF SCHR 0810-22BF
SCHR/L-22BF
Grooving and Turning H
Tools with Back and Front HBH HBL
Clamping for Swiss-Type CDX
and Automatic Machines B CWN-CWX
Left-hand shown

Designation H B OAL HBH HBL CDX (1) CWN (2) CWX (3)
SCHR/L 0810-22BF 8.0 10.0 125.00 2.0 24.0 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5
SCHR/L 10-22BF 10.0 10.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5
SCHR/L 12-22BF 12.0 12.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5
SCHR/L 16-22BF 16.0 16.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5 TOOLS FOR MINIATURE PARTS
(1) See insert dimensions
(2) Minimum cutting width
(3) Maximum cutting width
For inserts, see pages: SCIR-22-MTR-ISO (658) • SCIR/L-22-AD (367) • SCIR/L-22-AR/AL (367) • SCIR/L-22-BR/BL/BRA/BLA (365)
• SCIR/L-22-ER/EL/ERA/ELA (366) • SCIR/L-22-MTR/MTL (646) • SCIR/L-22-N/R/L (368) • SCIR/L-22-NP (369) • SCIR/L-22-NX (369)

LH OAL=LF
SCHR/L-22BF-JHP 5.5
Grooving and Turning Tools H
with High-Pressure Coolant UNF 5/16-24 typx3
Channels for Swiss-Type CWN-CWX Bar Max
and Automatic Machines B
50
70 Right-hand shown
Designation H B OAL LH CWN (1) CWX (2) CDX (3)
SCHR/L 10-22BF-JHP 10.0 10.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32"
SCHR/L 12-22BF-JHP 12.0 12.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32"
SCHR/L 16-22BF-JHP 16.0 16.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32"
• Note: Coolant ports of the left-hand tools are in the same position as those of the right-hand tools
(1) Minimum cutting width
(2) Maximum cutting width
(3) See insert dimensions
For inserts, see pages: SCIR-22-MTR-ISO (658) • SCIR/L-22-AD (367) • SCIR/L-22-AR/AL (367) • SCIR/L-22-BR/BL/BRA/BLA (365)
• SCIR/L-22-ER/EL/ERA/ELA (366) • SCIR/L-22-MTR/MTL (646) • SCIR/L-22-N/R/L (368) • SCIR/L-22-NP (369) • SCIR/L-22-NX (369)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
SCHR/L 10-22BF-JHP 1-3 2-4 3-5
SCHR/L 12-22BF-JHP 3-5 4-6 5-7
SCHR/L 16-22BF-JHP 6-8 7-9 8-10

B

Y-SCHR-22BF HF HH
Y Axis Tools for Swiss Type H OAH
Machines - Back or Front
Clamped Inserts for Grooving Dmax LH LF WF
and Turning Operations OAL

Designation H B HH LH HF WF OAH LF OAL D max
Y-SCHR 12-22BF 12.0 12.0 13.0 20.0 12.0 9.00 25.00 100.00 105.50 25.0 (1) SR M4X0.7-19425 T-8/5
Y-SCHR 16-22BF 16.0 16.0 9.0 20.0 16.0 13.00 25.00 125.00 130.50 38.0 SR M4X0.7-19425 T-8/5
(1)
(1) for grooving
For inserts, see pages: SCIR-22-MTR-ISO (658) • SCIR/L-22-AD (367) • SCIR/L-22-AR/AL (367) • SCIR/L-22-BR/BL/BRA/BLA (365)
• SCIR/L-22-ER/EL/ERA/ELA (366) • SCIR/L-22-MTR/MTL (646) • SCIR/L-22-N/R/L (368) • SCIR/L-22-NP (369) • SCIR/L-22-NX (369)

363
