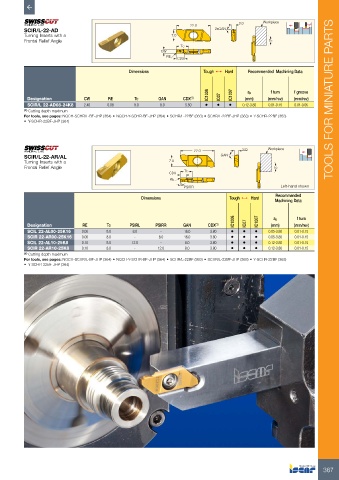

3.0 Workpiece
SCIR/L-22-AD 22.0 2xGAN
Turning Inserts with a 7.0
Frontal Relief Angle Tc
Tc
CW
RE
CDX
Dimensions Tough 1 Hard Recommended Machining Data

IC1008 IC1007 ap f turn f groove
Designation CW RE Tc GAN CDX (1) IC07 (mm) (mm/rev) (mm/rev) TOOLS FOR MINIATURE PARTS
SCIR/L 22-AD08-24K8 2.40 0.08 8.0 8.0 5.50 • • • 0.12-3.80 0.01-0.15 0.01-0.06
(1) Cutting depth maximum
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)

22.0 3.0 Workpiece

SCIR/L-22-AR/AL GAN
Turning Inserts with a 7.0
Frontal Relief Angle Tc
CDX Tc
RE
PSIRR Left-hand shown
Recommended
Dimensions Tough 1 Hard
Machining Data

IC1008 IC1007 ap f turn
Designation RE Tc PSIRL PSIRR GAN CDX (1) IC07 (mm) (mm/rev)
SCIL 22-AL00-25K16 0.00 8.0 8.0 - 16.0 3.80 • • • 0.05-3.80 0.01-0.15
SCIR 22-AR00-25K16 0.00 8.0 - 8.0 16.0 3.80 • • • 0.05-3.80 0.01-0.15
SCIL 22-AL10-25K8 0.10 8.0 12.0 - 8.0 3.80 • • • 0.12-3.80 0.01-0.15
SCIR 22-AR10-25K8 0.10 8.0 - 12.0 8.0 3.80 • • • 0.12-3.80 0.01-0.15
(1) Cutting depth maximum
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)
