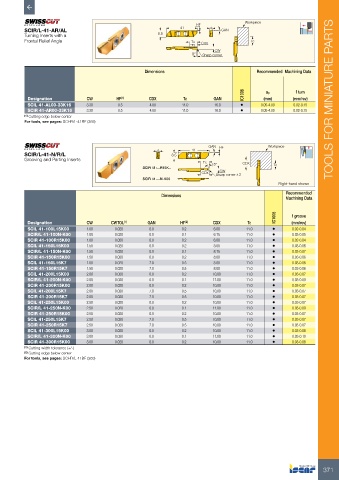

HF Workpiece
SCIR/L-41-AR/AL 41 4 GAN
Turning Inserts with a 8.5
Frontal Relief Angle Tc CDX Tc

CW
8° Sharp corner

Dimensions Recommended Machining Data

IC1008 ap f turn
Designation CW HF (1) CDX Tc GAN (mm) (mm/rev) TOOLS FOR MINIATURE PARTS
SCIL 41-AL00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15
SCIR 41-AR00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15
(1) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)

GAN HF Workpiece
SCIR/L-41-N/R/L 4 8.5 41
Grooving and Parting Inserts
Tc 15° CDX Tc
SCIR 41-...R15K..
CDX CW
Sharp corner x 2
SCIR 41-...N-K00
Right-hand shown
Recommended
Dimensions Machining Data

IC1008 f groove
Designation CW CWTOL (1) GAN HF (2) CDX Tc (mm/rev)
SCIL 41-100L15K00 1.00 0.020 0.0 0.2 6.00 11.0 • 0.02-0.04
SCIR/L 41-100N-K00 1.00 0.020 0.0 0.1 6.15 11.0 • 0.03-0.05
SCIR 41-100R15K00 1.00 0.020 0.0 0.2 6.00 11.0 • 0.02-0.04
SCIL 41-150L15K00 1.50 0.020 0.0 0.2 8.00 11.0 • 0.03-0.06
SCIR/L 41-150N-K00 1.50 0.020 0.0 0.1 8.15 11.0 • 0.03-0.07
SCIR 41-150R15K00 1.50 0.020 0.0 0.2 8.00 11.0 • 0.03-0.06
SCIL 41-150L15K7 1.50 0.020 7.0 0.5 8.00 11.0 • 0.03-0.06
SCIR 41-150R15K7 1.50 0.020 7.0 0.5 8.00 11.0 • 0.03-0.06
SCIL 41-200L15K00 2.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07
SCIR/L 41-200N-K00 2.00 0.020 0.0 0.1 11.00 11.0 • 0.03-0.09
SCIR 41-200R15K00 2.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07
SCIL 41-200L15K7 2.00 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07
SCIR 41-200R15K7 2.00 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07
SCIL 41-250L15K00 2.50 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07
SCIR/L 41-250N-K00 2.50 0.020 0.0 0.1 11.00 11.0 • 0.03-0.09
SCIR 41-250R15K00 2.50 0.020 0.0 0.2 10.00 11.0 • 0.03-0.07
SCIL 41-250L15K7 2.50 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07
SCIR 41-250R15K7 2.50 0.020 7.0 0.5 10.00 11.0 • 0.03-0.07
SCIL 41-300L15K00 3.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.08
SCIR/L 41-300N-K00 3.00 0.020 0.0 0.1 11.00 11.0 • 0.03-0.10
SCIR 41-300R15K00 3.00 0.020 0.0 0.2 10.00 11.0 • 0.03-0.08
(1) Cutting width tolerance (+/-)
(2) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)
