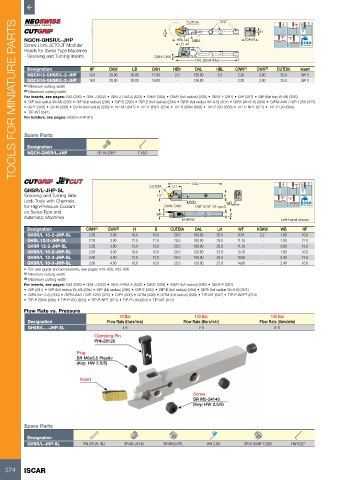

Page 376 - ISCAR(TURNING-CATALOG-42-2022)

CUTDIA CNT
TOOLS FOR MINIATURE PARTS
HF OAH
NQCH-GHSR/L-JHP HBL HBH OAW
Screw Lock JETCUT Modular LB Bar Max
Heads for Swiss Type Machines
- Grooving and Turning Inserts CWN-CWX
OAL (assembly)
Designation HF OAW LB OAH HBH OAL HBL CWN (1) CWX (2) CUTDIA Insert
NQCH12-GHSR/L-2-JHP 12.0 20.00 26.00 17.00 2.0 126.00 2.0 2.20 3.00 25.0 GIP 2
NQCH16-GHSR/L-2-JHP 16.0 20.00 26.00 19.00 - 126.00 - 2.20 3.00 25.0 GIP 2
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: GIG (296) • GIM-J (522) • GIM-J-RA/LA (522) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (flat top W<M) (295)
• GIP (full radius W<M) (295) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294) • GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375)
• GIPY (300) • GITM (299) • GITM (full radius) (299) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671) • TIP-P-UN (664)
• TIP-WT (641)
For holders, see pages: NQCH-JHP (61)

Spare Parts

Designation
NQCH-GHSR/L-JHP SR 16-236 P T-15/3

OAL
GHSR/L-JHP-SL CUTDIA LH
Grooving and Turning Side HF H
Lock Tools with Channels HBH WB
for High-Pressure Coolant CWN-CWX UNF 5/16”-24 typx3 Bar Max
on Swiss-Type and WF B
Automatic Machines HBKW Left-hand shown

Designation CWN (1) CWX (2) H B CUTDIA OAL LH WF HBKW WB HF
GHSR/L 10-2-JHP-SL 2.20 3.00 10.0 10.0 20.0 100.00 25.0 9.10 2.2 1.80 10.0
GHSL 12-2-JHP-SL 2.20 3.00 12.0 12.0 25.0 100.00 25.0 11.10 - 1.80 12.0
GHSR 12-2-JHP-SL 2.20 3.00 12.0 12.0 25.0 100.00 25.0 11.10 - 0.00 12.0
GHSR/L 16-2-JHP-SL 2.20 3.00 16.0 16.0 25.0 120.00 27.0 15.10 - 1.80 16.0
GHSR/L 12-3-JHP-SL 2.80 4.00 12.0 12.0 25.0 100.00 25.0 10.80 - 2.40 12.0
GHSR/L 16-3-JHP-SL 2.80 4.00 16.0 16.0 25.0 120.00 27.0 14.80 - 2.40 16.0
• For user guide and accessories, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: GIG (296) • GIM-J (522) • GIM-J-RA/LA (522) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291)
• GIP (297) • GIP (full radius W<M) (295) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294) • GIPA (full radius W=3-6) (301)
• GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375) • GIPY (300) • GITM (299) • GITM (full radius) (299) • TIP-MT (647) • TIP-P-BSPT (674)
• TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
GHSR/L...-JHP-SL 4-6 7-9 9-11
Clamping Pin
PIN-28128

Plug
SR M5x3.5 Plastic
(Key: HW 2.5/5)

Insert

Screw
SR M5-24145
(Key: HW 2.5/5)

Spare Parts
Designation
GHSR/L-JHP-SL PIN-28128 INJ SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32"
