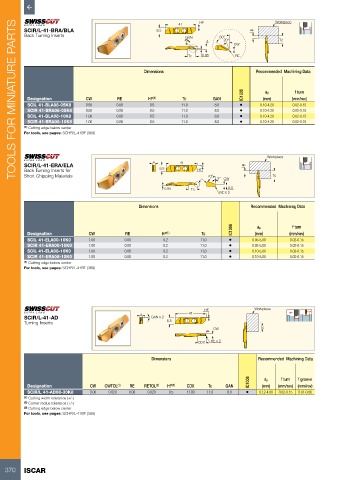

41 HF Workpiece
TOOLS FOR MINIATURE PARTS
SCIR/L-41-BRA/BLA 8.5 ap
Back Turning Inserts GAN 60°
4 20° Tc
CW

Tc 0.95 RE

Dimensions Recommended Machining Data

IC1008 ap f turn
Designation CW RE HF (1) Tc GAN (mm) (mm/rev)
SCIL 41-BLA08-05K8 0.50 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15
SCIR 41-BRA08-05K8 0.50 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15
SCIL 41-BLA08-10K8 1.00 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15
SCIR 41-BRA08-10K8 1.00 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15
(1) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)

Workpiece

SCIR/L-41-ERA/ELA 4 41 ap
Back Turning Inserts for 8.5 HF
Short Chipping Materials 70° Tc
3° CW
0.95 Tc 0.5
RE X 2

Dimensions Recommended Machining Data

IC1008 ap f turn
Designation CW RE HF (1) Tc (mm) (mm/rev)
SCIL 41-ELA00-10K0 1.00 0.00 0.2 11.0 • 0.05-5.00 0.02-0.15
SCIR 41-ERA00-10K0 1.00 0.00 0.2 11.0 • 0.05-5.00 0.02-0.15
SCIL 41-ELA08-10K0 1.00 0.08 0.2 11.0 • 0.10-5.00 0.02-0.15
SCIR 41-ERA08-10K0 1.00 0.08 0.2 11.0 • 0.10-5.00 0.02-0.15
(1) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)

HF Workpiece

SCIR/L-41-AD 4 GAN x 2 41
Turning Inserts 8.5
CW Tc
CDX RE x 2

Dimensions Recommended Machining Data

IC1008 ap f turn f groove
Designation CW CWTOL (1) RE RETOL (2) HF (3) CDX Tc GAN (mm) (mm/rev) (mm/rev)
SCIR/L 41-AD08-30K8 3.00 0.020 0.08 0.020 0.5 11.00 11.0 8.0 • 0.12-4.00 0.02-0.15 0.01-0.06
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)

370 ISCAR
