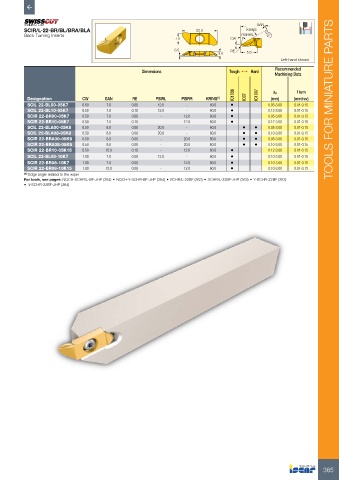

Page 367 - ISCAR(TURNING-CATALOG-42-2022)

GAN
SCIR/L-22-BR/BL/BRA/BLA 22.0 KRINS
Back Turning Inserts PSIRR\L
7.0 CW
0.5 RE
3.0 5.0
Left-hand shown
Dimensions Tough 1 Hard Recommended
Machining Data

IC1008 IC1007 ap f turn
Designation CW GAN RE PSIRL PSIRR KRINS (1) IC07 (mm) (mm/rev) TOOLS FOR MINIATURE PARTS
SCIL 22-BL00-05K7 0.50 7.0 0.00 12.0 - 60.0 • 0.05-3.00 0.01-0.15
SCIL 22-BL10-05K7 0.50 7.0 0.10 12.0 - 60.0 • 0.12-3.00 0.01-0.15
SCIR 22-BR00-05K7 0.50 7.0 0.00 - 12.0 60.0 • 0.05-3.00 0.01-0.15
SCIR 22-BR10-05K7 0.50 7.0 0.10 - 12.0 60.0 • 0.12-3.00 0.01-0.15
SCIL 22-BLA00-05K8 0.50 8.0 0.00 20.0 - 60.0 • • 0.05-3.00 0.01-0.15
SCIL 22-BLA08-05K8 0.50 8.0 0.08 20.0 - 60.0 • • 0.10-3.00 0.01-0.15
SCIR 22-BRA00-05K8 0.50 8.0 0.00 - 20.0 60.0 • • 0.05-3.00 0.01-0.15
SCIR 22-BRA08-05K8 0.50 8.0 0.08 - 20.0 60.0 • • 0.10-3.00 0.01-0.15
SCIR 22-BR10-05K15 0.50 15.0 0.10 - 12.0 60.0 • 0.12-3.00 0.01-0.15
SCIL 22-BL08-10K7 1.00 7.0 0.08 12.0 - 60.0 • 0.10-3.00 0.01-0.15
SCIR 22-BR08-10K7 1.00 7.0 0.08 - 12.0 60.0 • 0.10-3.00 0.01-0.15
SCIR 22-BR08-10K15 1.00 15.0 0.08 - 12.0 60.0 • 0.10-3.00 0.01-0.15
(1) Edge angle related to the wiper
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)

365
