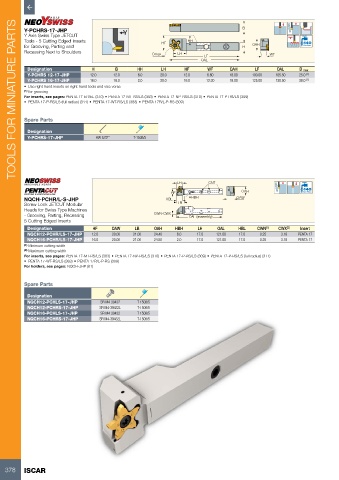

Page 380 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS
Y-PCHRS-17-JHP B
Y Axis Swiss Type JETCUT
Tools - 5 Cutting Edged Inserts HF HH
for Grooving, Parting and H OAH Bar Max
Recessing Next to Shoulders LH
Dmax
LF WF
OAL
Designation H B HH LH HF WF OAH LF OAL D max
Y-PCHRS 12-17-JHP 12.0 12.0 6.0 20.0 12.0 8.60 18.00 100.00 105.50 25.0 (1)
Y-PCHRS 16-17-JHP 16.0 16.0 2.0 20.0 16.0 12.30 18.00 125.00 130.50 38.0
(1)
• Use right-hand inserts on right-hand tools and vice versa
(1) for grooving
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)

Spare Parts
Designation
Y-PCHRS-17-JHP HW 5/32" T-1508/5

LH CNT

HF OAH Bar Max
NQCH-PCHR/L-S-JHP HBL HBH OAW
Screw Lock JETCUT Modular LB
Heads for Swiss Type Machines
- Grooving, Parting, Recessing CWN-CWX OAL (assembly)
5 Cutting Edged Inserts
Designation HF OAW LB OAH HBH LH OAL HBL CWN (1) CWX (2) Insert
NQCH12-PCHR/LS-17-JHP 12.0 20.00 21.00 24.40 6.0 17.0 121.00 17.0 0.25 3.18 PENTA 17
NQCH16-PCHR/LS-17-JHP 16.0 20.00 21.00 24.50 2.0 17.0 121.00 17.0 0.25 3.18 PENTA 17
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309) • PENTA 17-P-RS/LS (full radius) (311)
• PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)
For holders, see pages: NQCH-JHP (61)

Spare Parts
Designation
NQCH12-PCHLS-17-JHP SR M4-39432 T-1508/5
NQCH12-PCHRS-17-JHP SR M4-39432L T-1508/5
NQCH16-PCHLS-17-JHP SR M4-39432 T-1508/5
NQCH16-PCHRS-17-JHP SR M4-39432L T-1508/5
