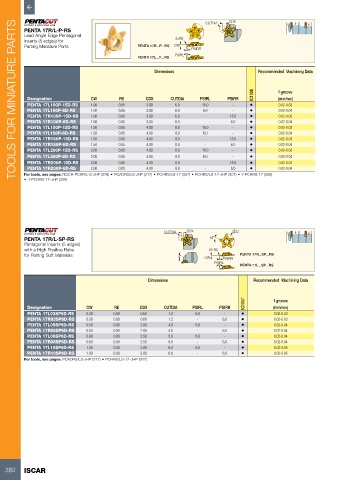

Page 384 - ISCAR(TURNING-CATALOG-42-2022)

CUTDIA CDX
TOOLS FOR MINIATURE PARTS
PENTA 17R/L-P-RS
Lead Angle Edge Pentagonal
Inserts (5 edges) for 2xRE
Parting Miniature Parts PENTA 17R...P...RS CW
PSIRR
PSIRL
PENTA 17L...P...RS
Dimensions Recommended Machining Data

IC1008 f groove
Designation CW RE CDX CUTDIA PSIRL PSIRR (mm/rev)
PENTA 17L100P-15D-RS 1.00 0.05 3.00 6.0 15.0 - • 0.02-0.03
PENTA 17L100P-6D-RS 1.00 0.05 3.00 6.0 6.0 - • 0.02-0.04
PENTA 17R100P-15D-RS 1.00 0.05 3.00 6.0 - 15.0 • 0.02-0.03
PENTA 17R100P-6D-RS 1.00 0.05 3.00 6.0 - 6.0 • 0.02-0.04
PENTA 17L150P-15D-RS 1.50 0.05 4.00 8.0 15.0 - • 0.02-0.03
PENTA 17L150P-6D-RS 1.50 0.05 4.00 8.0 6.0 - • 0.02-0.04
PENTA 17R150P-15D-RS 1.50 0.05 4.00 8.0 - 15.0 • 0.02-0.03
PENTA 17R150P-6D-RS 1.50 0.05 4.00 8.0 - 6.0 • 0.02-0.04
PENTA 17L200P-15D-RS 2.00 0.05 4.00 8.0 15.0 - • 0.02-0.03
PENTA 17L200P-6D-RS 2.00 0.05 4.00 8.0 6.0 - • 0.02-0.04
PENTA 17R200P-15D-RS 2.00 0.05 4.00 8.0 - 15.0 • 0.02-0.03
PENTA 17R200P-6D-RS 2.00 0.05 4.00 8.0 - 6.0 • 0.02-0.04
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308)
• Y-PCHRS-17-JHP (308)

CUTDIA CDX Ø17

PENTA 17R/L-SP-RS 18˚
Pentagonal Inserts (5 edges)
with a High Positive Rake 2X RE
for Parting Soft Materials 4˚ CW PSIRR PENTA 17R...SP...RS
PSIRL
PENTA 17L...SP...RS

Dimensions Recommended Machining Data

IC1007 f groove
Designation CW RE CDX CUTDIA PSIRL PSIRR (mm/rev)
PENTA 17L03SP6D-RS 0.30 0.00 0.60 1.2 6.0 - • 0.02-0.03
PENTA 17R03SP6D-RS 0.30 0.00 0.60 1.2 - 6.0 • 0.02-0.03
PENTA 17L05SP6D-RS 0.50 0.00 2.00 4.0 6.0 - • 0.02-0.04
PENTA 17R05SP6D-RS 0.50 0.00 2.00 4.0 - 6.0 • 0.02-0.04
PENTA 17L08SP6D-RS 0.80 0.00 2.50 5.0 6.0 - • 0.02-0.04
PENTA 17R08SP6D-RS 0.80 0.00 2.50 5.0 - 6.0 • 0.02-0.04
PENTA 17L10SP6D-RS 1.00 0.00 3.00 6.0 6.0 - • 0.02-0.05
PENTA 17R10SP6D-RS 1.00 0.00 3.00 6.0 - 6.0 • 0.02-0.05
For tools, see pages: PCADRS/LS-JHP (317) • PCHRS/LS-17-JHP (307)
