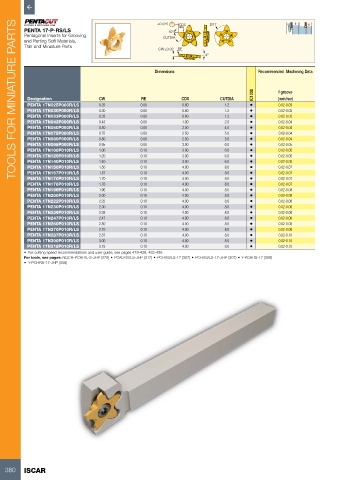

Page 382 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS
±0.025 CDX Ø17
PENTA 17-P-RS/LS 10°
Pentagonal Inserts for Grooving CUTDIA
and Parting Soft Materials,
Thin and Miniature Parts
CW ±0.02 RE
4°

Dimensions Recommended Machining Data

IC1008 f groove
Designation CW RE CDX CUTDIA (mm/rev)
PENTA 17N025P000R/LS 0.25 0.00 0.60 1.2 • 0.02-0.03
PENTA 17N030P000R/LS 0.30 0.00 0.60 1.2 • 0.02-0.03
PENTA 17N033P000R/LS 0.33 0.00 0.60 1.2 • 0.02-0.03
PENTA 17N043P000R/LS 0.43 0.00 1.00 2.0 • 0.02-0.04
PENTA 17N050P000R/LS 0.50 0.00 2.00 4.0 • 0.02-0.04
PENTA 17N075P000R/LS 0.75 0.00 2.50 5.0 • 0.02-0.04
PENTA 17N080P000R/LS 0.80 0.00 2.50 5.0 • 0.02-0.04
PENTA 17N095P000R/LS 0.95 0.00 3.00 6.0 • 0.02-0.05
PENTA 17N100P010R/LS 1.00 0.10 3.00 6.0 • 0.02-0.05
PENTA 17N120P010R/LS 1.20 0.10 3.00 6.0 • 0.02-0.05
PENTA 17N140P010R/LS 1.40 0.10 3.00 6.0 • 0.02-0.05
PENTA 17N150P010R/LS 1.50 0.10 4.00 8.0 • 0.02-0.07
PENTA 17N157P010R/LS 1.57 0.10 4.00 8.0 • 0.02-0.07
PENTA 17N170P010R/LS 1.70 0.10 4.00 8.0 • 0.02-0.07
PENTA 17N178P010R/LS 1.78 0.10 4.00 8.0 • 0.02-0.07
PENTA 17N196P010R/LS 1.96 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N200P010R/LS 2.00 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N222P010R/LS 2.22 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N230P010R/LS 2.30 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N239P010R/LS 2.39 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N247P010R/LS 2.47 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N250P010R/LS 2.50 0.10 4.00 8.0 • 0.02-0.08
PENTA 17N270P010R/LS 2.70 0.10 4.00 8.0 • 0.02-0.09
PENTA 17N287P010R/LS 2.87 0.10 4.00 8.0 • 0.02-0.10
PENTA 17N300P010R/LS 3.00 0.10 4.00 8.0 • 0.02-0.10
PENTA 17N318P010R/LS 3.18 0.10 4.00 8.0 • 0.02-0.10
• For cutting speed recommendations and user guide, see pages 419-428, 432-436
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308)
• Y-PCHRS-17-JHP (308)

380 ISCAR
