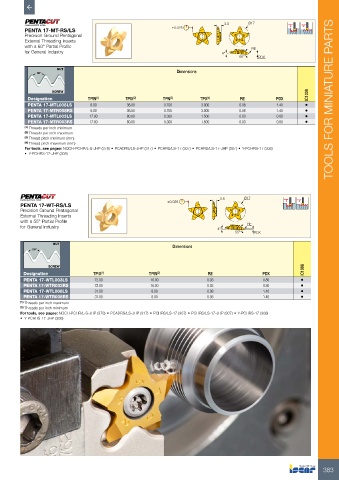

Page 385 - ISCAR(TURNING-CATALOG-42-2022)

3.5 Ø17
PENTA 17-MT-RS/LS ±0.025
Precision Ground Pentagonal
External Threading Inserts
with a 60° Partial Profile RE
for General Industry 4°
60° PDX

NUT
60° Dimensions

SCREW
Designation TPIN (1) TPIX (2) TPN (3) TPX (4) RE PDX IC1008 TOOLS FOR MINIATURE PARTS
PENTA 17-MTL008LS 8.00 36.00 0.700 3.000 0.08 1.40 •
PENTA 17-MTR008RS 8.00 36.00 0.700 3.000 0.08 1.40 •
PENTA 17-MTL003LS 17.00 80.00 0.300 1.500 0.03 0.80 •
PENTA 17-MTR003RS 17.00 80.00 0.300 1.500 0.03 0.80 •
(1) Threads per inch minimum
(2) Threads per inch maximum
(3) Thread pitch minimum (mm)
(4) Thread pitch maximum (mm)
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308)
• Y-PCHRS-17-JHP (308)

3.5 Ø17
PENTA 17-WT-RS/LS ±0.025
Precision Ground Pentagonal
External Threading Inserts
with a 55° Partial Profile RE
for General Industry 4°
55° PDX

NUT Dimensions
55°

SCREW
Designation TPIX (1) TPIN (2) RE PDX IC1008
PENTA 17-WTL003LS 72.00 16.00 0.03 0.80 •
PENTA 17-WTR003RS 72.00 16.00 0.03 0.80 •
PENTA 17-WTL008LS 31.00 8.00 0.08 1.40 •
PENTA 17-WTR008RS 31.00 8.00 0.08 1.40 •
(1) Threads per inch maximum
(2) Threads per inch minimum
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308)
• Y-PCHRS-17-JHP (308)
