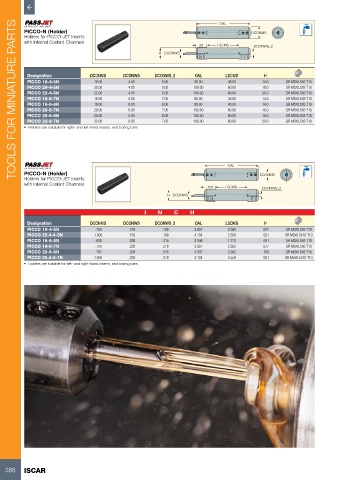

Page 390 - ISCAR(TURNING-CATALOG-42-2022)

OAL
TOOLS FOR MINIATURE PARTS
PICCO-N (Holder) DCONMS
Holders for PICCO-JET Inserts
with Internal Coolant Channels
20 LSCMS DCONWS_2
H DCONWS

Designation DCONMS DCONWS DCONWS_2 OAL LSCMS H
PICCO 16-4-5N 16.00 4.05 5.05 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 20-4-5N 20.00 4.05 5.05 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 22-4-5N 22.00 4.05 5.05 100.00 60.00 20.0 SR M5X0.5X8 T10
PICCO 16-6-7N 16.00 6.05 7.05 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 16-6-8N 16.00 6.05 8.00 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 20-6-7N 20.00 6.05 7.05 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 20-6-8N 20.00 6.05 8.00 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 22-6-7N 22.00 6.05 7.05 100.00 60.00 20.0 SR M5X0.5X8 T10
• Holders are suitable for right- and left-hand inserts, and boring bars

OAL
PICCO-N (Holder) DCONMS
Holders for PICCO-JET Inserts
with Internal Coolant Channels
.787 LSCMS DCONWS_2
H DCONWS

I N C H
Designation DCONMS DCONWS DCONWS_2 OAL LSCMS H
PICCO 19-4-5N .750 .159 .199 3.937 2.362 .677 SR M5X0.5X6 T10
PICCO 25.4-4-5N 1.000 .159 .199 4.134 2.559 .921 SR M5X0.5X10 T10
PICCO 16-6-8N .630 .238 .315 3.346 1.772 .551 SR M5X0.5X6 T10
PICCO 19-6-7N .750 .238 .278 3.937 2.362 .677 SR M5X0.5X6 T10
PICCO 20-6-8N .787 .238 .315 3.937 2.362 .709 SR M5X0.5X8 T10
PICCO 25.4-6-7N 1.000 .238 .278 4.134 2.559 .921 SR M5X0.5X10 T10
• Holders are suitable for left- and right-hand inserts, and boring bars

388 ISCAR
