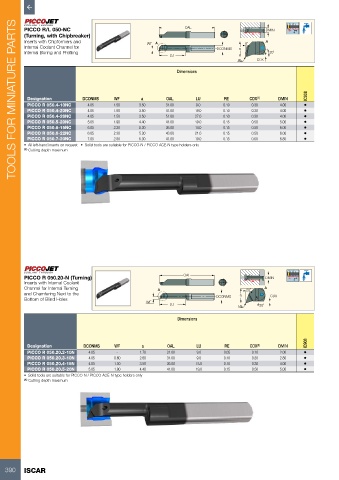

Page 392 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS

PICCO R/L 050-NC OAL DMIN
(Turning, with Chipbreaker)
Inserts with Chipformers and WF A 8˚ A
Internal Coolant Channel for DCONMS a

Internal Boring and Profiling 20˚
LU
RE CDX
Dimensions

IC908
Designation DCONMS WF a OAL LU RE CDX (1) DMIN
PICCO R 050.4-10NC 4.05 1.50 3.50 31.00 9.0 0.10 0.30 4.00 •
PICCO R 050.4-20NC 4.05 1.50 3.50 41.00 19.0 0.10 0.30 4.00 •
PICCO R 050.4-28NC 4.05 1.50 3.50 51.00 27.0 0.10 0.30 4.00 •
PICCO R 050.5-20NC 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 •
PICCO R 050.6-15NC 6.05 2.30 5.30 36.00 14.0 0.15 0.50 6.00 •
PICCO R 050.6-22NC 6.05 2.30 5.30 43.00 21.0 0.15 0.50 6.00 •
PICCO R 050.7-20NC 7.05 2.80 6.30 41.00 19.0 0.15 0.60 6.80 •
• All left-hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

PICCO R 050.20-N (Turning) OAL DMIN
Inserts with Internal Coolant
Channel for Internal Turning A 20˚ A
and Chamfering Next to the DCONMS a CDX
Bottom of Blind Holes
WF LU RE 20˚

Dimensions

Designation DCONMS WF a OAL LU RE CDX (1) DMIN IC908
PICCO R 050.20.2-10N 4.05 - 1.70 31.00 9.0 0.05 0.10 2.00 •
PICCO R 050.20.3-10N 4.05 0.60 2.60 31.00 9.0 0.10 0.20 2.80 •
PICCO R 050.20.4-16N 4.05 1.50 3.50 36.00 15.0 0.10 0.30 4.00 •
PICCO R 050.20.5-20N 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
