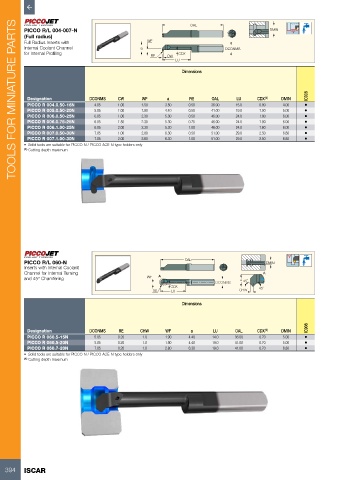

TOOLS FOR MINIATURE PARTS
OAL
PICCO R/L 004-007-N DMIN
(Full radius)
Full Radius Inserts with WF
Internal Coolant Channel a DCONMS
for Internal Profiling CDX
RE CW
LU
Dimensions

IC908
Designation DCONMS CW WF a RE OAL LU CDX (1) DMIN
PICCO R 004.0.50-16N 4.05 1.00 1.50 3.50 0.50 36.00 15.0 0.80 4.00 •
PICCO R 005.0.50-20N 5.05 1.00 1.90 4.40 0.50 41.00 19.0 1.00 5.00 •
PICCO R 006.0.50-25N 6.05 1.00 2.30 5.30 0.50 46.00 24.0 1.80 6.00 •
PICCO R 006.0.75-25N 6.05 1.50 2.30 5.30 0.75 46.00 24.0 1.80 6.00 •
PICCO R 006.1.00-25N 6.05 2.00 2.30 5.30 1.00 46.00 24.0 1.80 6.00 •
PICCO R 007.0.50-30N 7.05 1.00 2.80 6.30 0.50 51.00 29.0 2.50 6.80 •
PICCO R 007.1.00-30N 7.05 2.00 2.80 6.30 1.00 51.00 29.0 2.50 6.80 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

PICCO R/L 060-N OAL DMIN
Inserts with Internal Coolant
Channel for Internal Turning A
and 45° Chamfering WF A a
DCONMS 45˚
CDX 45˚
RE LU CHW

Dimensions

IC908
Designation DCONMS RE CHW WF a LU OAL CDX (1) DMIN
PICCO R 060.5-15N 5.05 0.20 1.0 1.90 4.40 14.0 36.00 0.70 5.00 •
PICCO R 060.5-20N 5.05 0.20 1.0 1.90 4.40 19.0 41.00 0.70 5.00 •
PICCO R 060.7-20N 7.05 0.20 1.0 2.80 6.30 19.0 41.00 0.70 6.80 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
